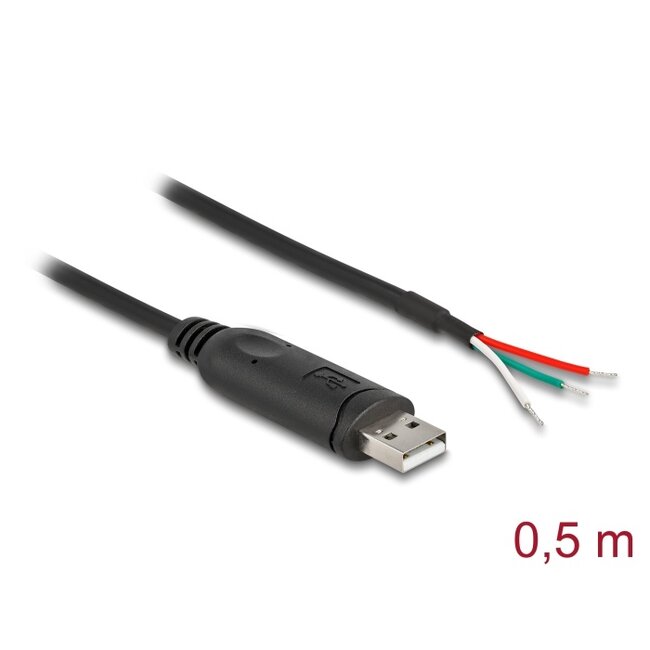

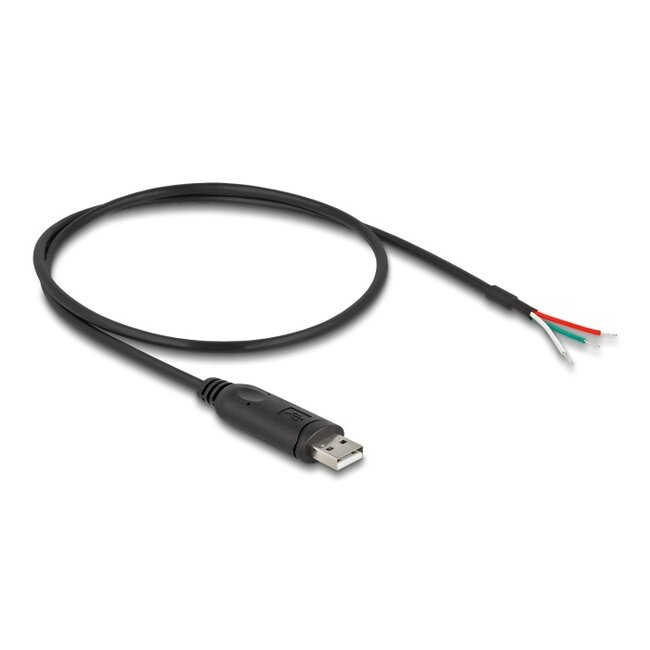

The RS-485 adapter cable by Delock supports data transmission between devices with USB 2.0 and devices with RS-485 interfaces.
Open wire ends
With the tinned open wire ends, the connection can be made directly to an RS-485 device port.
• Connectors:
1 x USB Type-A male
1 x Serial RS-485 3 x open wire ends (tinned)
• Chipset: FTDI FT232R
• Compatible to UHCI / OHCI / EHCI controller
• Data transfer rate up to 921.6 Kbps
• Pin assignment: T/R (A+) red, T/R (B-) white, GND green
• Cable diameter: ca. 5 mm
• Conductor: stranded copper wire
• Insulator: PVC
• Cable length incl. connectors: ca. 0.5 m
• Colour: black
• Linux Kernel 5.19 or above
• Windows 10/10-64/11
• PC or laptop with a free USB Type-A port
Package content
• USB Type-A to RS-485 adapter
