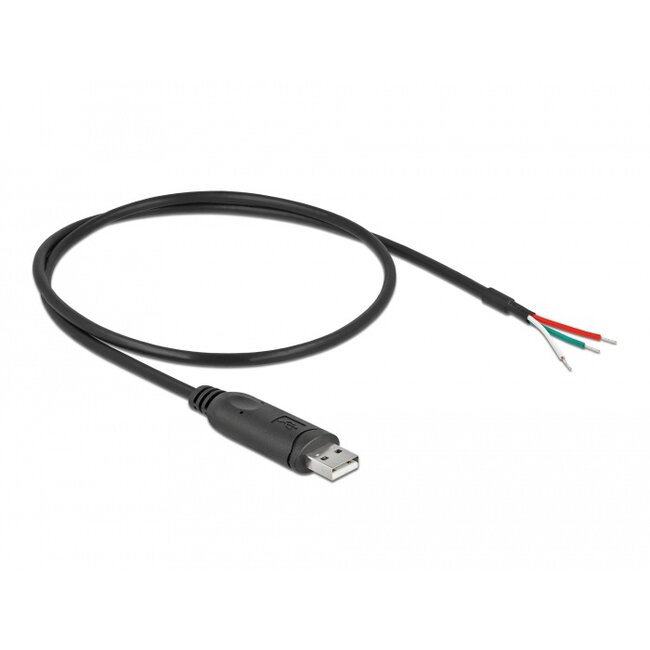

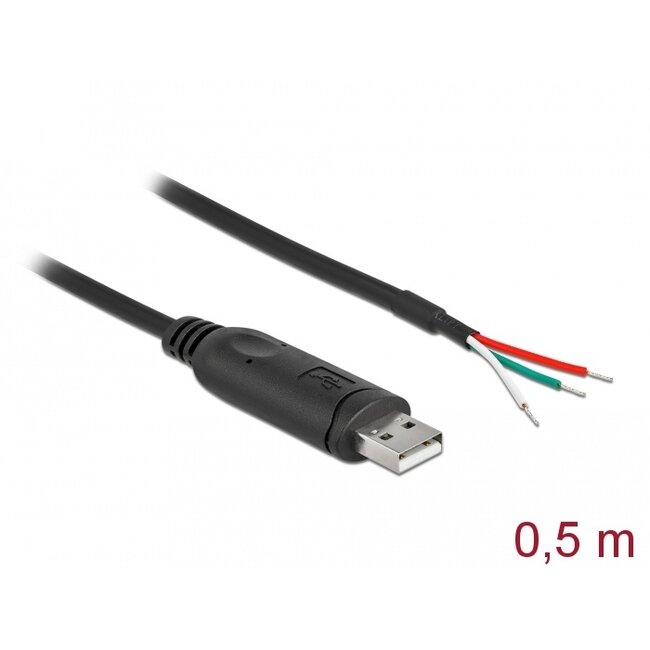

This USB 2.0 Type-A to serial RS-232 adapter cable by Delock is suitable as a connection cable between a device with USB 2.0 and a device with RS-232 port. With the tinned open cable ends, the connection can be made directly to the RS-232 device connector or flexiible to various terminal blocks. In addition, it can be used to produce individual adapters and cable assemblies.
Specification• Connectors:
1 x USB Type-A male
1 x Serial RS-232 3 x open wires (tinned)
• Chipset: FTDI FT232R
• Compatible to UHCI / OHCI / EHCI controller
• Databits: 7 or 8
• Stop bits: 1 or 2
• Parity: none, space, even, odd, mark
• Data transfer rate up to 230.4 Kbps
• Pinout: RXD (red), TXD (white), GND (green)
• ESD protection IEC 61000-4-2
HCP & VCP: ±4kV
Air Discharge: ±8kV
Contact Discharge: ±4kV
• Cable diameter: ca. 5 mm
• Cable gauge: 26 AWG
• Conductor: stranded copper wire
• Isolation: PVC
• Cable length incl. connectors: ca. 0.5 m
• Colour: black
• Operating temperature: -10 °C ~ 80 °C
• Mac OS 10.13 or above
• Linux Kernel 2.6 or above
• Windows 8.1/8.1-64/10/10-64/11
• Windows Server 2012 / Server 2012R2 / Server 2016
• PC or laptop with a free USB Type-A port
Package content
• USB Type-A to 1 x serial Adapter
