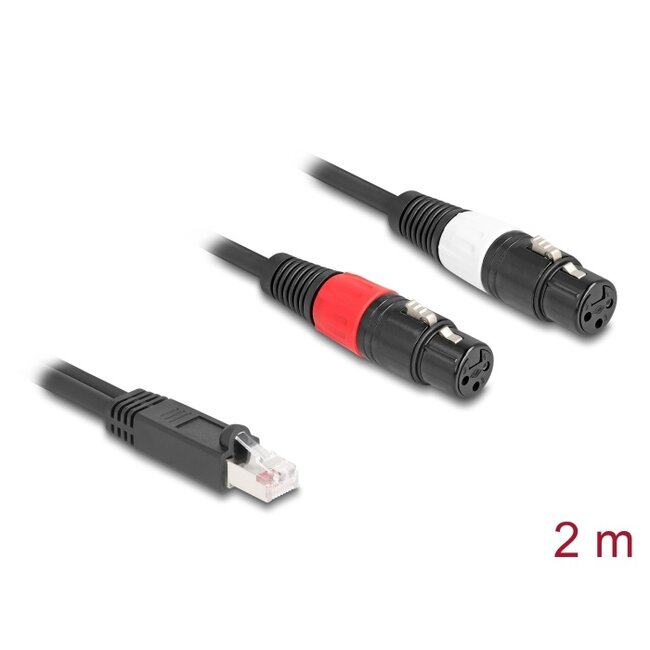

This cable by Delock enables the transmission and extension of audio signals via a Cat.5 network cable. It is used to connect professional audio devices with an XLR interface, e.g. for amplifiers, loudspeakers, KTV devices, DMX controller series for LED RGB strips or to connect a microphone to a mixing console.
Specification• Connectors:
1 x RJ45 plug
2 x XLR 3 pin jack (red, white)
• Cat.5 specification
• Pin assignment:
RJ45 to XLR red: 4-1 shielded, 3-2, 6-3
RJ45 to XLR white: 4-1 shielded, 1-2, 2-3
• Cable gauge: 24 AWG
• Cable diameter: ca. 6 mm
• Material: PVC
• Cable colour: black
• Length incl. connectors: ca. 2 m
• An optional RJ45 connection cable
• A free RJ45 port
• Two free XLR female ports
Package content
• Cable
