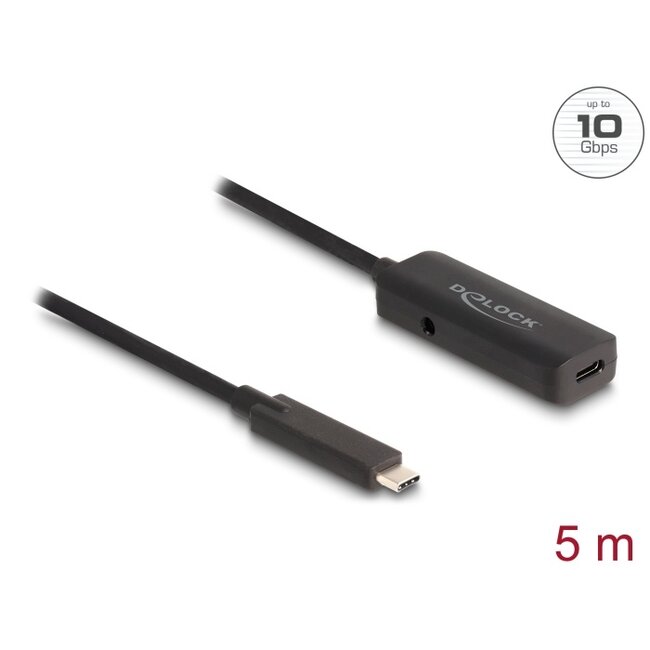

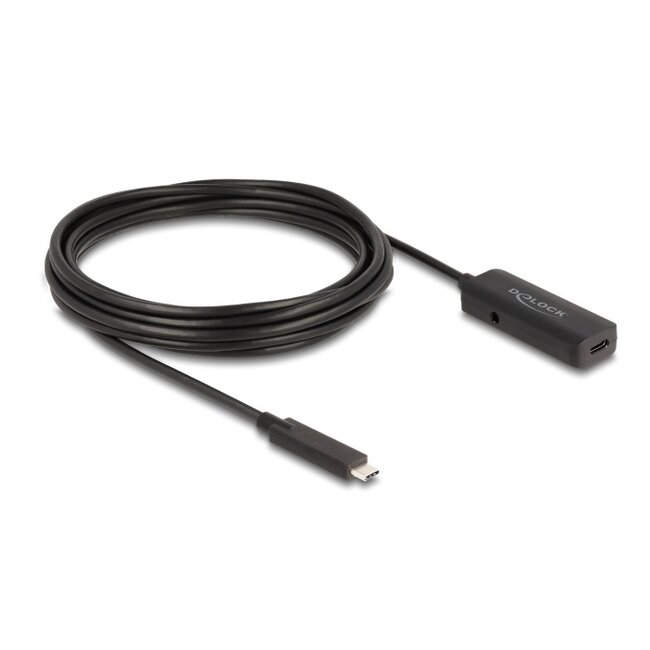

This active USB cable by Delock can be used to extend a USB connection by 5 m. The cable has an additional DC power socket to which an optional power supply can be connected. This ensures optimum data transmission even when used with powerful devices such as a 2.5″ hard drive.
Note
The cable cannot transmit video signals, so it is not suitable to connect a USB Type-C™ monitor.
• Connectors:
1 x USB 10 Gbps USB Type-C™ male
1 x USB 10 Gbps USB Type-C™ female
1 x DC jack
• Chipset: Prolific PL2586

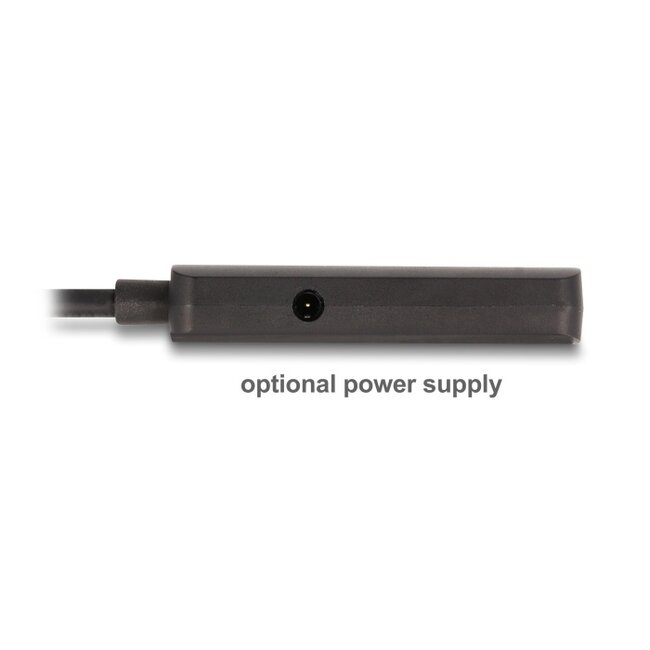

• DC jack for optional power supply
• Cable gauge:
30 AWG data line
24 AWG power line
• Cable diameter: ca. 4.8 mm
• Data transfer rate up to 10 Gbps
• Colour: black
• Dimensions of housing (LxWxH): ca. 62.1 x 23.1 x 11.5 mm
• Length without connectors: ca. 5 m
Specification of power connector
• Input: 5 V / 2 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 1.35 mm
outside: ø ca. 3.5 mm
length: ca. 9.65 mm
• USB extension cable
