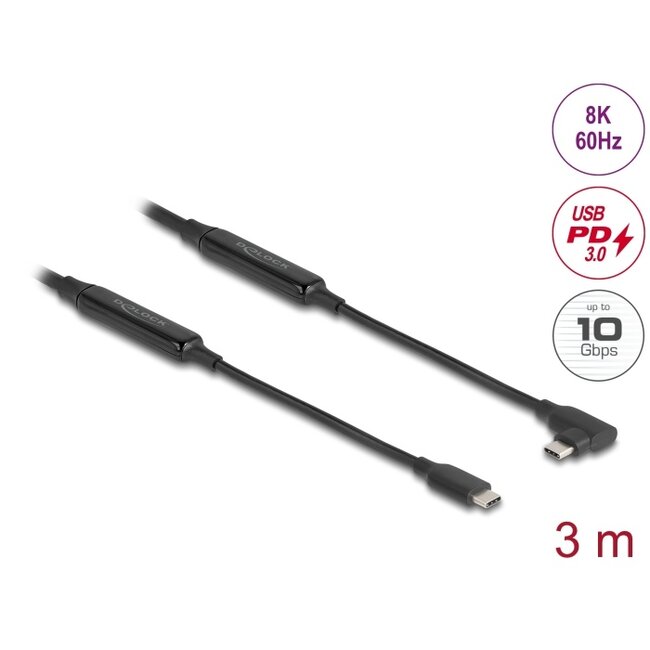

This active USB cable by Delock enables the bi-directional connection between devices with a USB Type-C™ connector. The integrated E-Marker chipset supports the PD 3.0 function for fast charging with a charging power of up to 60 W.
Ideal for VR glasses
Due to the two signal amplifiers, the 10 Gbps data transmission can be realized over 3 m. The long cable length allows for more freedom of movement, which also makes the cable suitable for use with VR glasses. It can achieve a resolution of 8K 60 Hz and the angled connector is ideal for connecting to VR glasses.
• Connectors:
1 x USB 10 Gbps USB Type-C™ male
1 x USB 10 Gbps USB Type-C™ male angled
• Chipset:
ANX7411 E-Marker
ANX7451 signal amplifier
• Cable gauge:
30 + 34 AWG data line
22 AWG power line
• Resolution up to 7680 x 4320 @ 60 Hz (depending on the system and the connected hardware)
• Output current: up to 3 A
• Cable diameter: ca. 4.2 mm
• Data transfer rate up to USB 10 Gbps
• Non-directional for data
• Supports HDR
• Supports HDCP
• Supports DisplayPort Alt Mode
• USB Power Delivery (USB PD 3.0) support up to 60 watt
• Colour: black
• Length incl. connectors: ca. 3 m
• USB 10 Gbps cable
