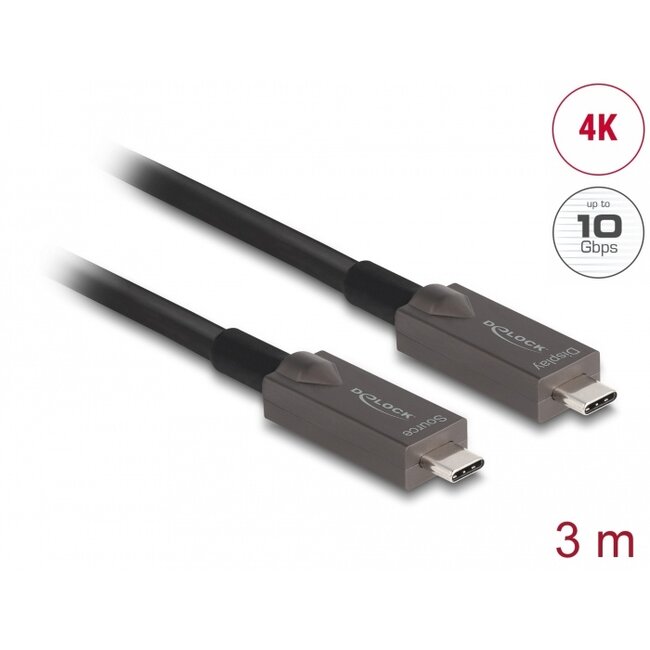

This USB cable by Delock enables the connection between a device with a USB Type-C™ connector and a PC or a laptop equipped with a free USB Type-C™ port.
Active Optical Cable
This active optical cable uses optical fiber to transmit high-speed signals. Compared to traditional copper cable, it is softer, thinner, lighter, and can transmit signals over longer distances without loss.
DisplayPort 1.4 with 2 lanes
The cable is suitable for connecting a USB-C™ monitor with resolution up to 4K Ultra HD (3840 x 2160 @ 144 Hz) to a computer with USB-C™ interface and DisplayPort Alternate Mode support.
USB with 10 Gbps
The active optical cable enables data transfer rates of up to 10 Gbps when connecting USB 10 Gbps compatible devices. Of course, USB 2.0 devices can also be connected.
USB Power Delivery support up to 60 watt
Supporting the USB Power Delivery standard, connected devices can be powered up to 60 W (20 V / 3 A).
Note
This cable is only compatible with DisplayPort (DP alt mode) devices and it will not work with Thunderbolt™ devices.
• Connectors:
2 x USB 10 Gbps USB Type-C™ male
• Active optical cable: fiber / copper hybrid cable
• Supports 2 lanes DisplayPort 1.4
• Supports Display Stream Compression 1.2 (DSC)
• Supports DP Alt Mode
• Transmission of audio and video signals
• Maximum resolution (depending on the system and the connected hardware):
DisplayPort 1.4 with DSC: up to 3840 x 2160 @ 144 Hz
DisplayPort 1.4 without DSC: up to 3840 x 2160 @ 60 Hz
DisplayPort 1.2 without DSC: up to 3840 x 2160 @ 30 Hz
• Supports HDR (High Dynamic Range)
• Supports HDCP 1.4 and 2.2
• Fixed signal direction for video (Source / Display)
• Non-directional for data
• Data transfer rate up to 10 Gbps
• Downwards compatible to USB 2.0
• Output current: up to 3 A
• Cable diameter: ca. 6.5 mm
• Colour: black
• Length incl. connectors: ca. 3 m
• PC or laptop with a free USB Type-C™ port and DisplayPort alternate mode
• Monitor with a free USB Type-C™ (DP Alt Mode) interface
Package content
• SuperSpeed USB 10 Gbps cable
