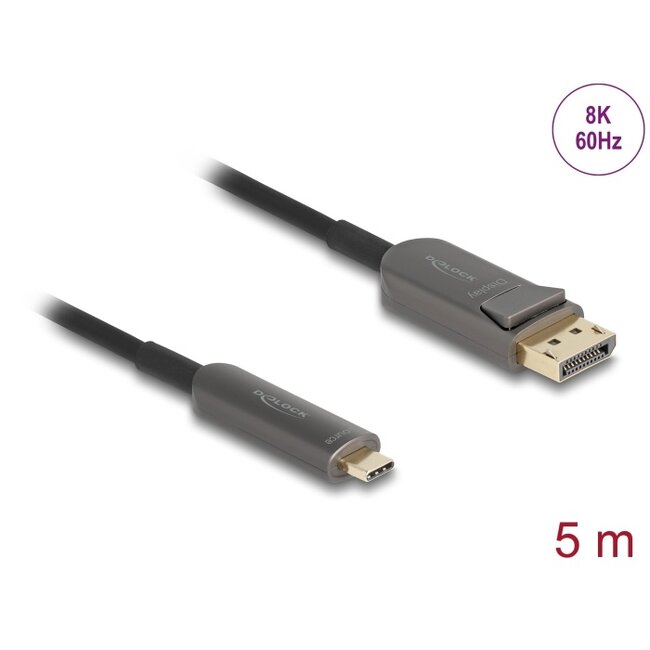

This cable by Delock enables the connection of a DisplayPort monitor to a device with USB-C™ or Thunderbolt™ 3 port, such as a MacBook or a Chromebook. The interface has to support the DisplayPort Alternate Mode.
Active Optical Cable
This active optical cable uses optical fiber to transmit high-speed signals. Compared to traditional copper cable, it is softer, thinner, lighter, and can transmit signals over longer distances without loss.
Ideal for gamers
By supporting a maximum bandwidth of 40 Gbps, content up to 8K @ 60 Hz resolution can be displayed, and even up to 240 Hz at 4K resolution.
• Connectors:
1 x USB Type-C™ male
1 x DisplayPort male
• Active optical cable: fiber / copper hybrid cable
• DisplayPort 2.1 specification
• Downwards compatible to DisplayPort 2.0, 1.4, 1.3, 1.2 and 1.1
• Signal direction: USB Type-C™ input > DisplayPort output
• Transmission of audio and video signals
• Data transfer rate up to 40 Gbps
• Maximum resolution (depending on the system and the connected hardware):
7680 x 4320 @ 60 Hz
3840 x 2160 @ 240 Hz
• Supports Display Stream Compression 1.2a (DSC)
• Supports HDR (High Dynamic Range)
• Supports HDCP 1.4 and 2.2
• Supports UHBR 10 (10 Gbps / Lane) data rate
• Cable diameter: ca. 4.8 mm
• Smallest bending radius: 48 mm
• LS0H (halogen-free)
• Contacts gold-plated
• Operating temperature: -10 °C ~ 50 °C
• Colour: black
• Length incl. connectors: ca. 5 m
• USB-C™ to DisplayPort cable
