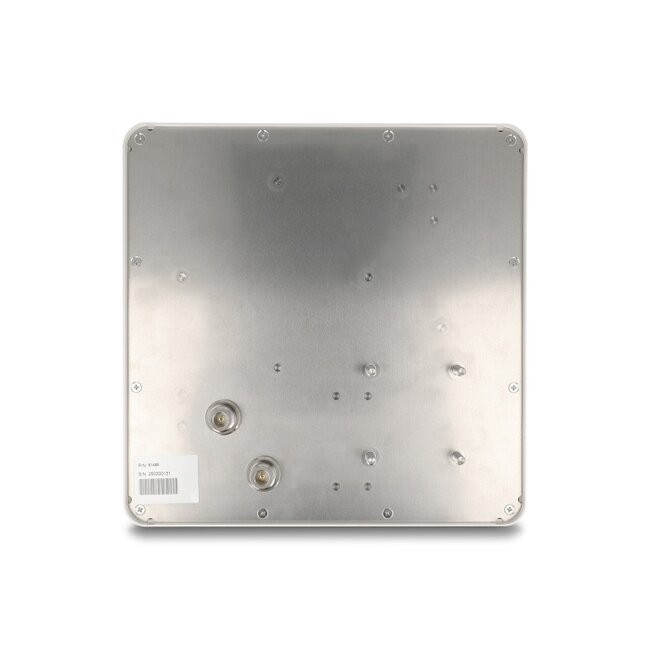

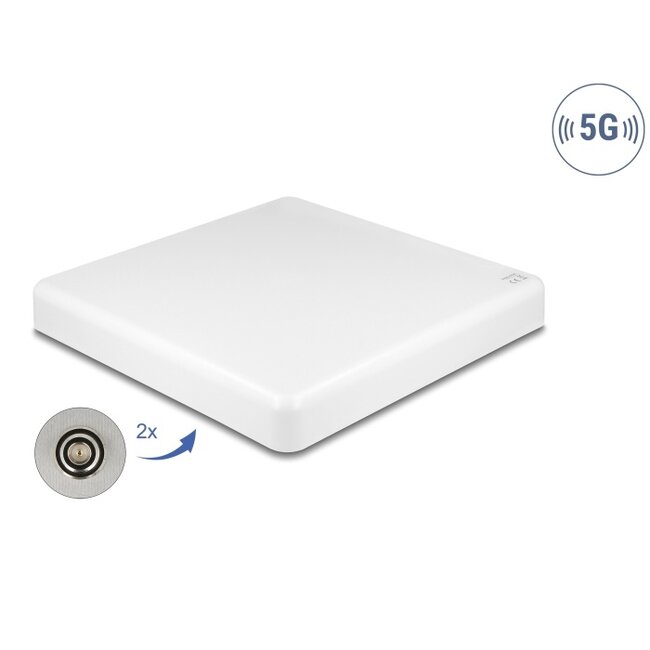

This 5G antenna by Delock allows the usage of different 5G bands inside and outside.
5G the new mobile radio standard
5G unlike its predecessors LTE (4G) and UMTS (3G) will use more and wider frequency spectrums. The 5G standard promises more throughput, capacity and low latency.
• Connector: 2 x N jack
• Frequency range:
698 - 960 MHz
1710 - 2690 MHz
3300 - 5000 MHz
• Antenna gain: 2.7 - 9.0 dBi
• Impedance: 50 Ohm
• VSWR:
< 5.0 @ 698 - 960 MHz
< 2.5 @ 1710 - 2690 MHz
< 2.5 @ 3300 - 5000 MHz
• Polarisation: linear, dual polarisation
• Operating temperature: -40 °C ~ 85 °C
• Housing material: PC
• Protection class: IP67
• Colour: white
• Weight: ca. 1.33 kg
• Dimensions (LxWxH): ca. 250.0 x 250.0 x 32.2 mm
• Device with free N connectors
Package content
• Antenna

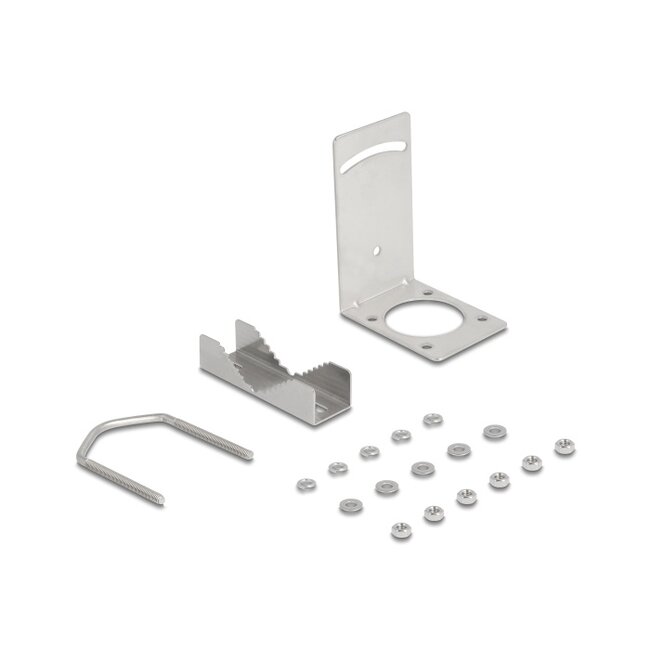

• Mounting material
