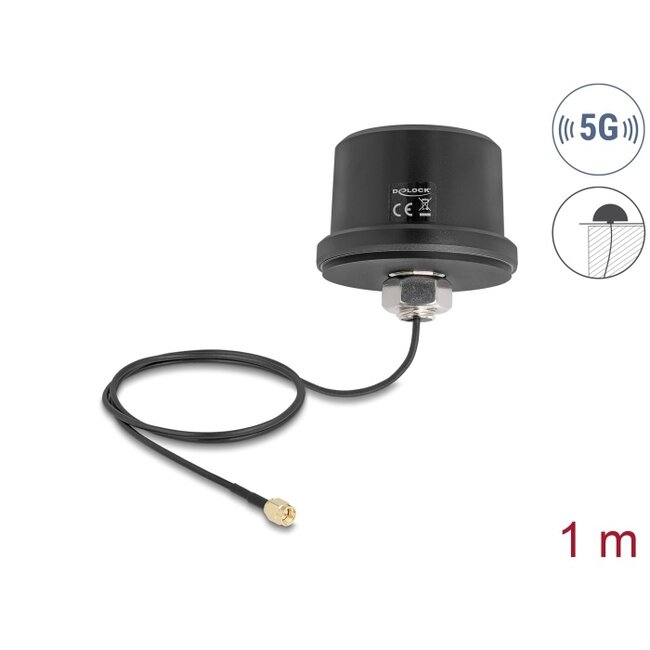

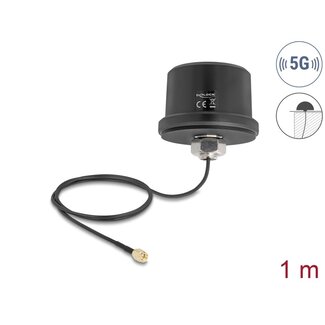

This 5G LTE GNSS WiFi 6 antenna by Delock allows the usage of different 5G LTE bands outdoors. It is completely compatible to GSM, UMTS, LTE, ZigBee, Z-Wave, NB-IoT, WiFi 6, Bluetooth, ISM and LoRa.
5G the new mobile radio standard
5G unlike its predecessors LTE (4G) and UMTS (3G) will use more and wider frequency spectrums. The 5G standard promises more throughput, capacity and low latency.
• Connector: 1 x SMA plug
• Frequency range:
617 - 798 MHz
803 - 960 MHz
1166 - 1610 MHz
1710 - 2200 MHz
2300 - 2690 MHz
3300 - 5000 MHz
5150 - 5925 MHz
• Antenna gain:
2.08 dBi @ 617 - 798 MHz
2.18 dBi @ 803 - 960 MHz
1.89 dBi @ 1166 - 1610 MHz
2.37 dBi @ 1710 - 2200 MHz
3.33 dBi @ 2300 - 2690 MHz
2.74 dBi @ 3300 - 5000 MHz
2.06 dBi @ 5150 - 5925 MHz
• Impedance: 50 Ohm
• VSWR:
< 4.0 @ 617 - 798 MHz
< 4.0 @ 803 - 960 MHz
< 4.5 @ 1166 - 1610 MHz
< 3.5 @ 1710 - 2200 MHz
< 3.5 @ 2300 - 2690 MHz
< 3.5 @ 3300 - 5000 MHz
< 3.0 @ 5150 - 5925 MHz
• Polarisation: linear, vertical
• Operating temperature: -40 °C ~ 85 °C
• Housing material: PC
• Colour: black
• Cable type: ULA100
• Cable colour: black
• Cable attenuation: 1 dB @ 1500 MHz per meter
• Cable length: ca. 1 m
• Weight: ca. 141 g
• Dimensions (LxD): ca. 50 x 78 mm
• Device with a free SMA jack
Package content
• Antenna

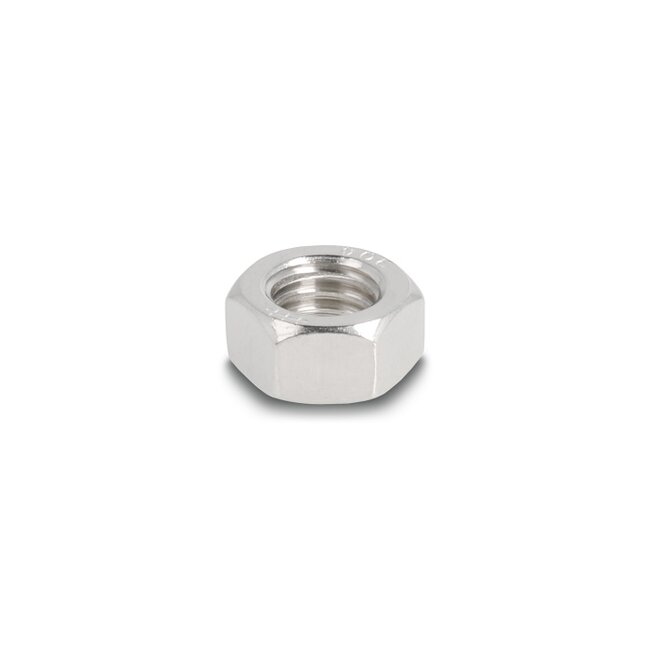

• Nut
