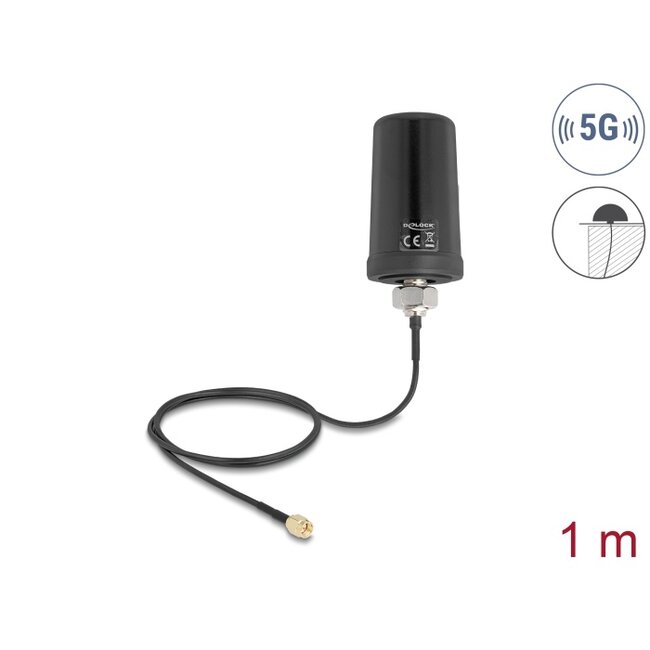

This 5G LTE GNSS WiFi 6 antenna by Delock allows the usage of different 5G LTE bands inside and outside. It is completely compatible to GSM, UMTS, LTE, ZigBee, Z-Wave, NB-IoT, WiFi 6, Bluetooth, ISM and LoRa.
5G the new mobile radio standard
5G unlike its predecessors LTE (4G) and UMTS (3G) will use more and wider frequency spectrums. The 5G standard promises more throughput, capacity and low latency.
• Connector: 1 x SMA plug
• Frequency range:
617 - 960 MHz
1166 - 1610 MHz
1710 - 2200 MHz
2300 - 2690 MHz
3300 - 5925 MHz
• Antenna gain: 1.1 - 4.0 dBi
• Impedance: 50 Ohm
• VSWR: < 3.5 - < 5.0
• Polarisation: linear, vertical
• Operating temperature: -40 °C ~ 85 °C
• Housing material: PC
• Colour: black
• Protection class: IP67
• Cable type: ULA100
• Cable attenuation: 1 dB @ 1500 MHz per meter
• Cable colour: black
• Cable length: ca. 1 m
• Dimensions (LxD): ca. 77 x 45 mm
• Weight: ca. 135 g
• Device with a free SMA jack
Package content
• Antenna

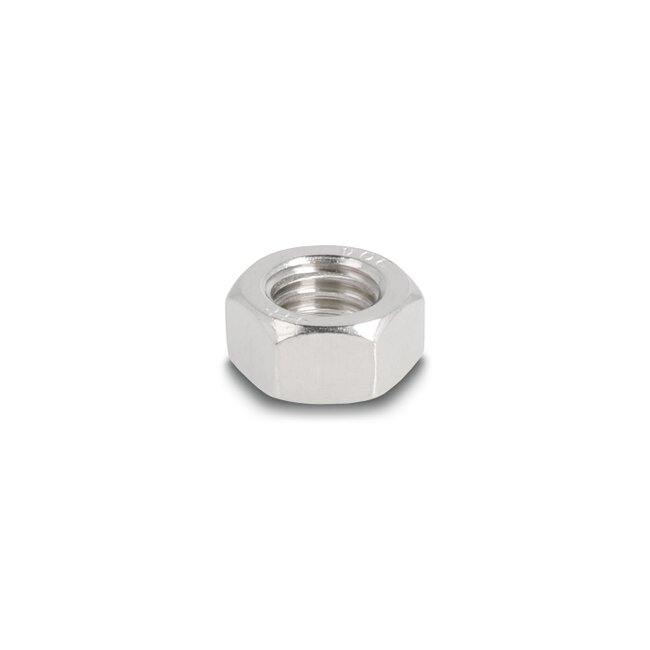

• Nut
