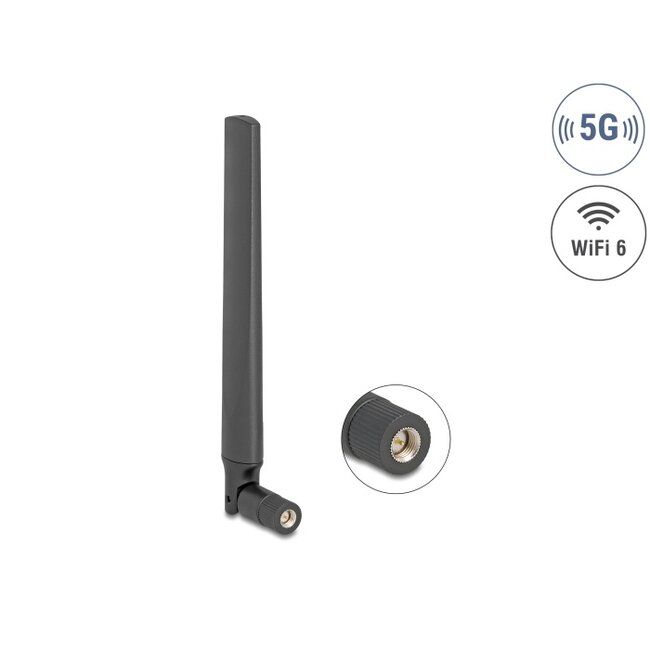

This 5G antenna by Delock allows the usage of different 5G bands inside.
5G the new mobile radio standard
5G unlike its predecessors LTE (4G) and UMTS (3G) will use more and wider frequency spectrums. The 5G standard promises more throughput, capacity and low latency.
• Connectors: 1 x SMA plug
• Frequency range:
617 - 960 MHz
1166 - 1610 MHz
1710 - 2200 MHz
2300 - 2690 MHz
3300 - 5000 MHz
5150 - 5925 MHz
• Antenna gain:
0.94 dBi @ 617 - 960 MHz
1.90 dBi @ 1166 - 1610 MHz
3.10 dBi @ 1710 - 2200 MHz
3.65 dBi @ 2300 - 2690 MHz
3.40 dBi @ 3300 - 5000 MHz
4.10 dBi @ 5150 - 5925 MHz
• Impedance: 50 Ohm
• VSWR:
< 4.0 @ 617 - 960 MHz
< 4.0 @ 1166 - 1610 MHz
< 4.0 @ 1710 - 2200 MHz
< 4.0 @ 2300 - 2690 MHz
< 4.0 @ 3300 - 5000 MHz
< 3.0 @ 5150 - 5925 MHz
• Polarisation: linear, vertical
• Operating temperature: -10 °C ~ 55 °C
• Colour: black
• Length:
ca. 183.6 mm (with tilt joint)
ca. 158.0 mm (without tilt joint)
• Diameter: ca. 21.5 mm
• Diameter: ca. 13.0 mm (SMA)
• Device with a free SMA jack
Package content
• 5G antenna
