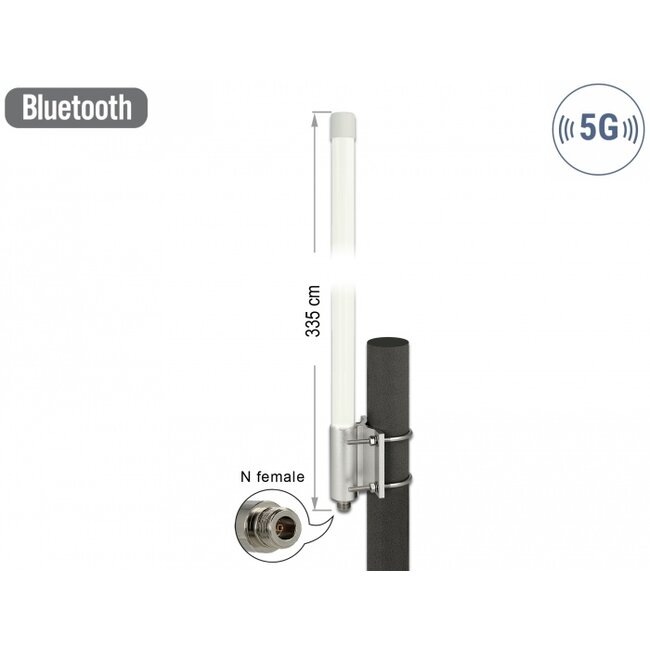

This waterproof antenna by Delock allows the usage of different 5G and LTE bands outdoors. It is completely compatible to GSM, UMTS, 5G LTE, ZigBee, Z-Wave, NB-IoT, WLAN 2.4 GHz, Bluetooth, ISM, DECT and LoRa.
5G mobile radio standard
5G unlike its predecessors LTE (4G) and UMTS (3G) will use more and wider frequency spectrums.
The 5G standard promises more throughput, capacity and low latency.
• Connector: 1 x N jack waterproof
• Frequency range:
617 - 798 MHz
803 - 960 MHz
1452 - 1496 MHz
1710 - 2200 MHz
2300 - 2690 MHz
3300 - 3800 MHz
4200 - 5000 MHz
• Antenna gain: -2.14 - 2.93 dBi
• Impedance: 50 Ohm
• VSWR: 3.0 - 5.0
• Polarisation: linear, vertical
• Operating temperature: -40 °C ~ 85 °C
• Housing material: GFRP
• Length: ca. 335 mm
• Diameter: ca. 27 mm
• Weight: ca. 284 g
• Device with one free N port
Package content
• Antenna

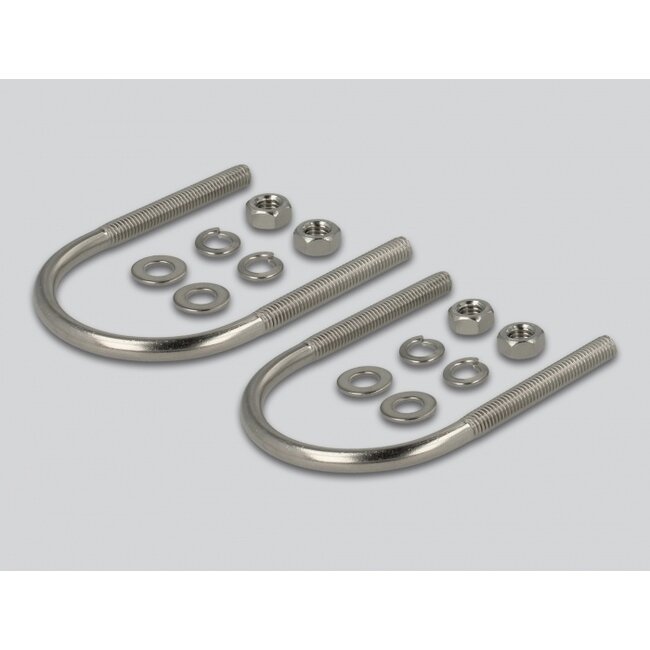

• Mounting material
