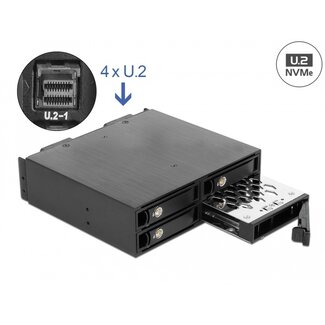

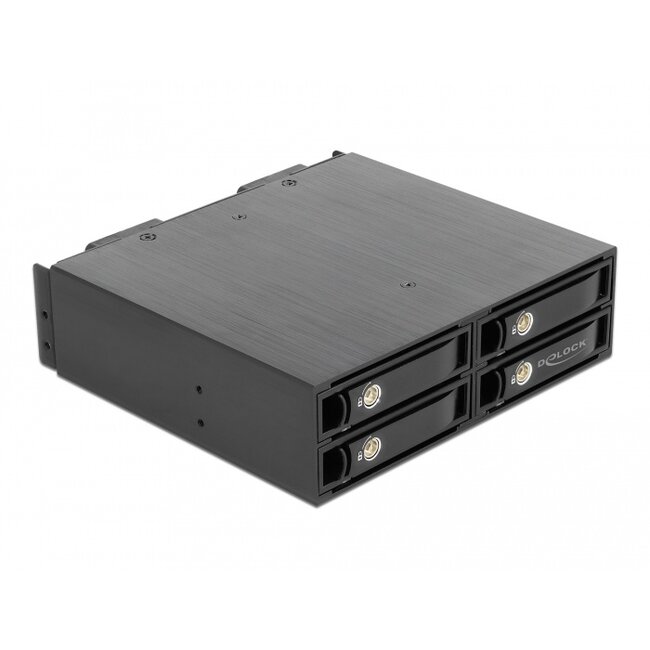

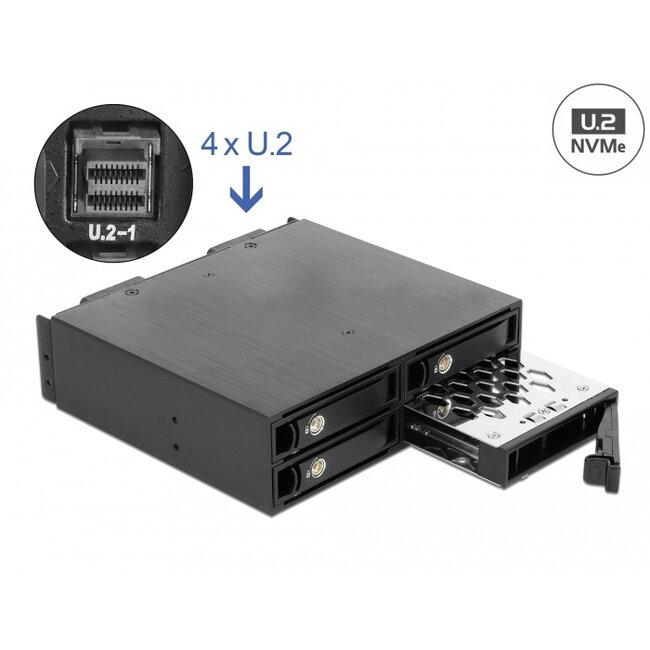

Description This solid metal mobile rack by Delock can be installed into a free 5.25″ bay of a PC, IPC or server enclosure and enables the operation of up to four 2.5″ U.2 SSD. To ensure the maximum speed at each port, each slot has its own SFF-8643 connector.
Quick change of SSD

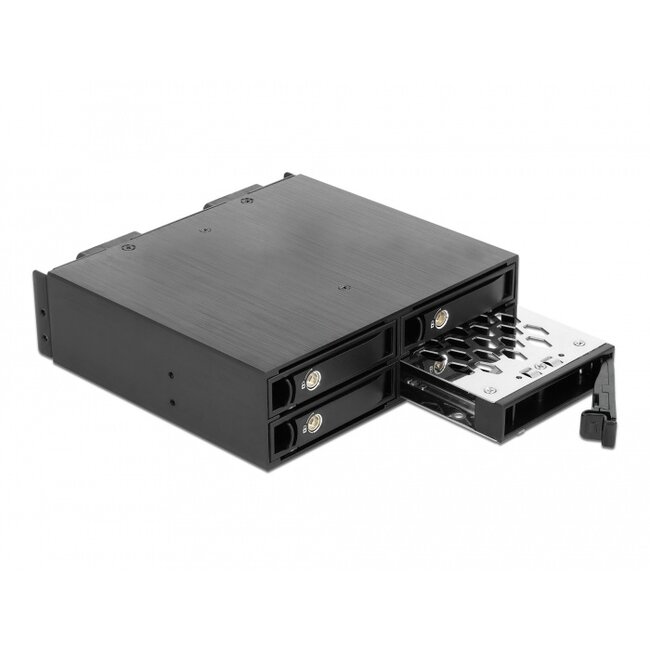

Due to the special mechanism, the SSD can be exchanged quickly and easily. For example, data backups can be taken and stored in a safe place.
Protection against theft
Each of the four removable frames is provided with a separate lock. Thus, the hard disks and data can be protected against theft and misuse.
Good cooling

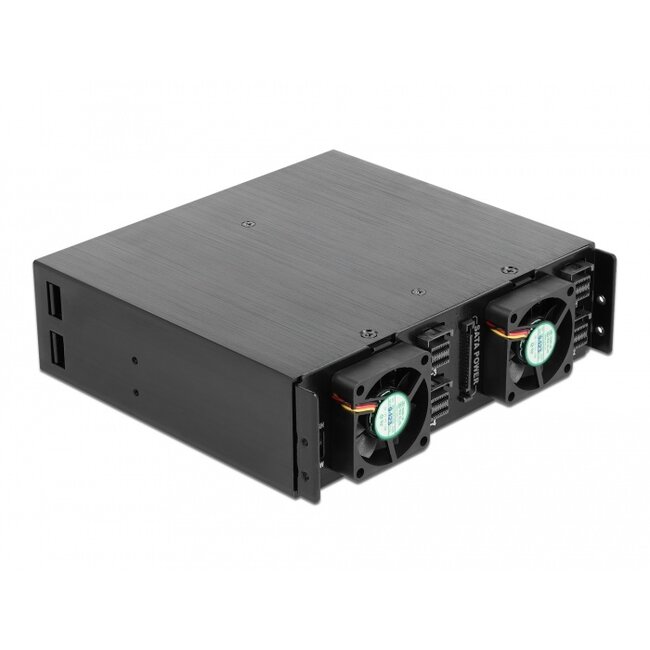

In operation, two 35 mm rear fans ensure an efficient and effective airflow to cool all 4 slots. The fans can optionally be set to low or high speed to ensure optimal cooling.
Specification • Connectors:
internal: 4 x SFF-8639 female
external:

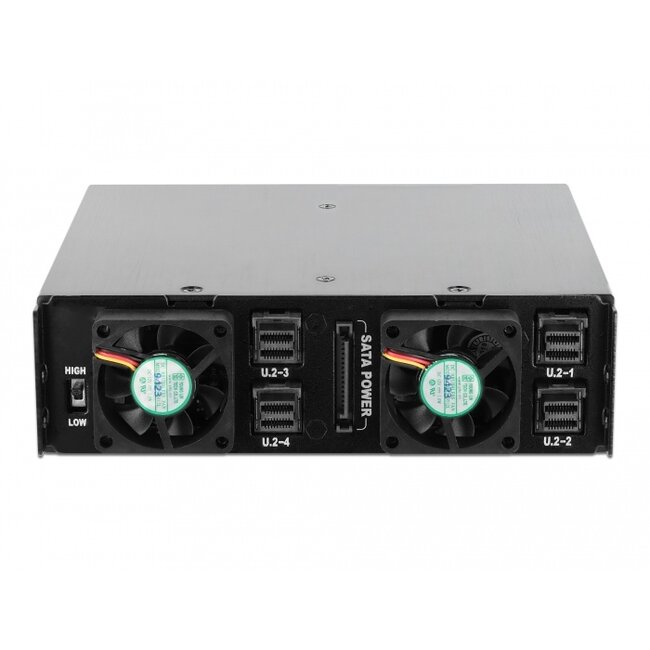

4 x Mini SAS HD SFF-8643 female
1 x SATA 15 pin power connector
• Suitable for 2.5″ U.2 NVMe SSD:
SSD height up to 15 mm
• Compatible to PCI Express V4.0

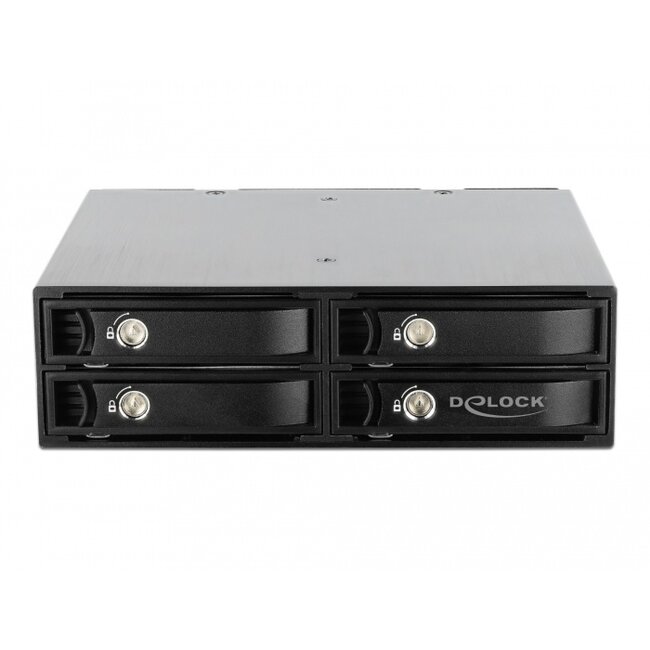

• Mobile rack with key lock for each bay
• 4 x LED indicator for power and access
• Robust aluminum housing
• 2 x fan 35 x 35 mm at the back side
• Fan speed control in two steps
• Key lock
• Bootable
• Operating temperature: 0 °C ~ 55 °C
• Storage temperature: -20 °C ~ 55 °C
• Relative humidity: 5 - 65 % (non condensing)
• Dimensions (LxWxH): ca. 146 x 139 x 42 mm
System requirements • Linux Kernel 5.1 or above
• Windows 8.1/8.1-64/10/10-64
• Windows Server 2016
• A free 5.25″ bay
• Up to four free U.2 ports
• Power supply with a free SATA power connector
Package content
• 5.25″ mobile rack
• 4 x 2.5″ mobile rack inner tray

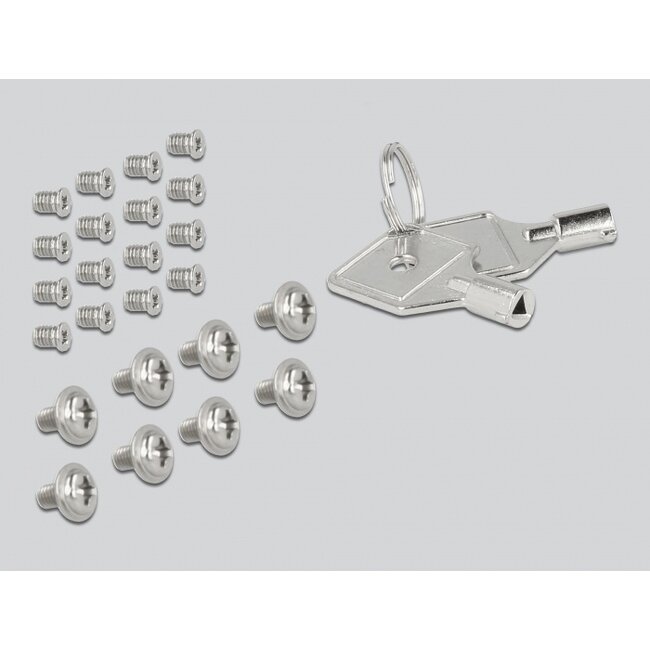

• 2 x keys
• 8 x rack screws
• 16 x hard drive screws
• User manual
