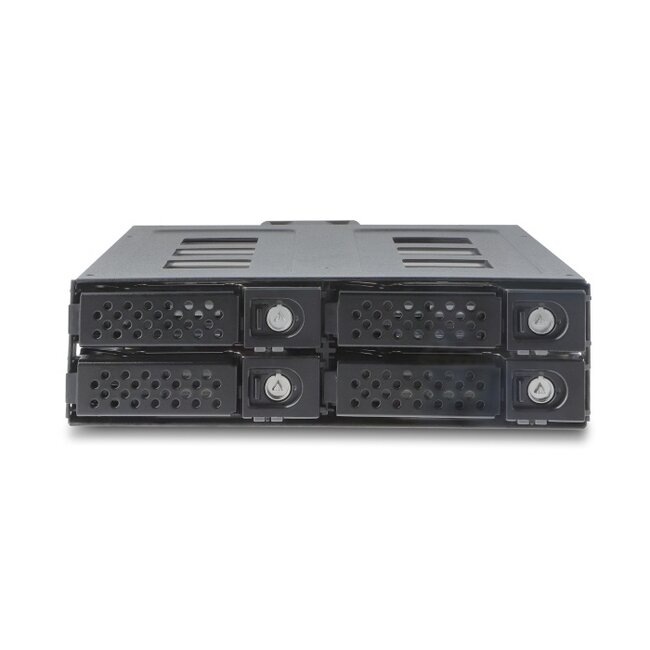

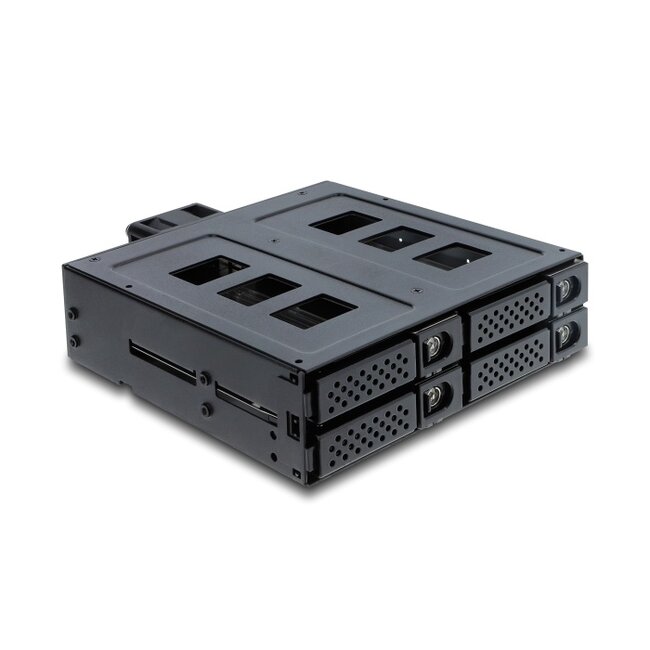

This solid metal mobile rack by Delock can be installed into a 5.25″ bay of a PC, IPC or server enclosure and enables the operation of up to 4 2.5″ SATA or SAS HDD or SSD.
Quick change of memory

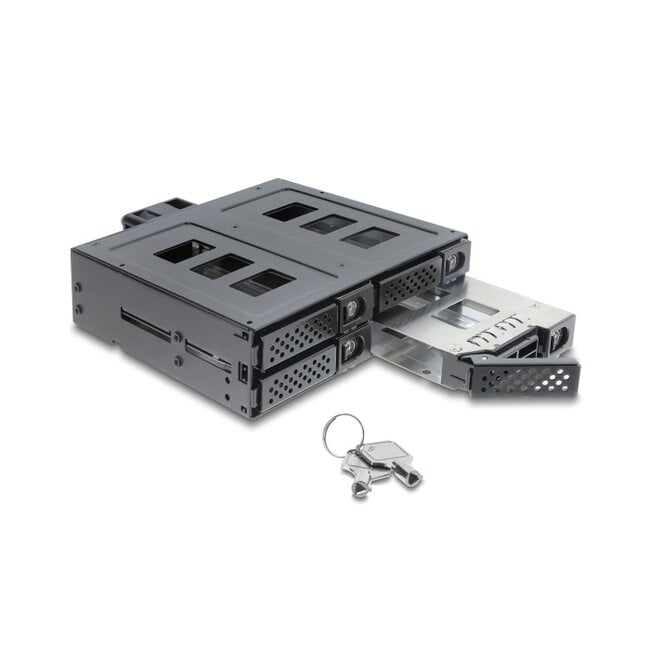

Due to the special mechanism, the HDD / SSD can be exchanged quickly and easily. For example, data backups can be taken and stored in a safe place.
Tray with key lock and springs

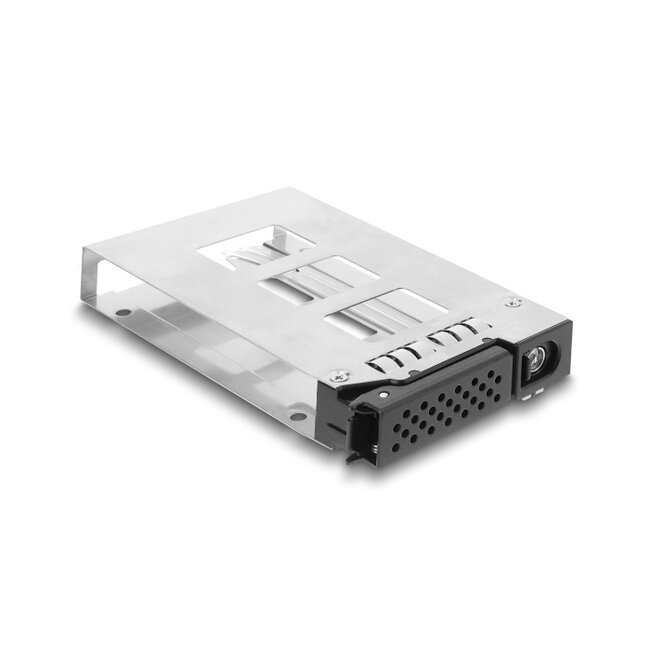

The mobile rack is equipped with a key lock to prevent unauthorised access. The stable carrier of metal has springs on the top and bottom which reduce vibrations.
Efficient cooling for the drives

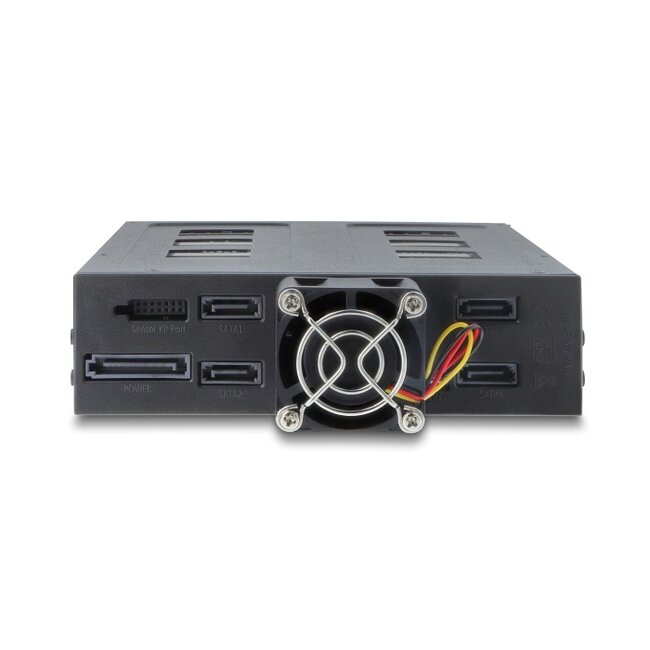

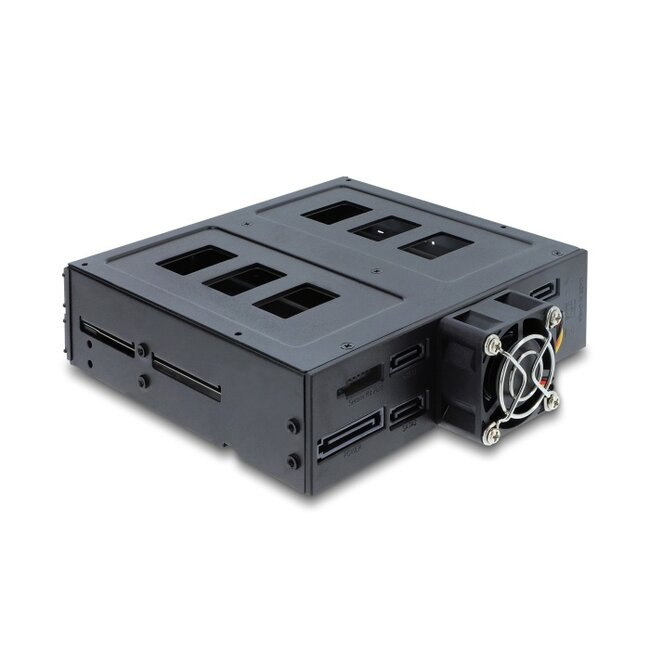

Large ventilation openings on the top and bottom of the Delock mobile frame ensures excellent airflow. An integrated fan at the rear provides additional air circulation, delivering optimal cooling performance for the drives.
• Connectors:
internal:
4 x SATA 6 Gb/s / SAS 12 Gb/s 22 pin receptacle
external:
4 x SATA 7 pin plug
1 x SATA 15 pin plug
1 x 3 pin fan connector male
1 x 14 pin sensor kit female (optional)
• Suitable for 2.5″ SATA HDD / SSD:
HDD height up to 15 mm
SATA HDD / SSD up to 6 Gb/s
SAS HDD up to 12 Gb/s
• Data transfer rate up to 12 Gb/s
• Mobile rack with key lock for each bay
• 8 x LED indicator for power and access
• Hot Swap
• Bootable
• Robust aluminum housing
• Tray made of metal
• 1 x 40 mm fan
• PC with one free 5.25″ bay
• PC with 4 free SATA ports
• Power supply with a free SATA power connector
Package content
• Mobile Rack

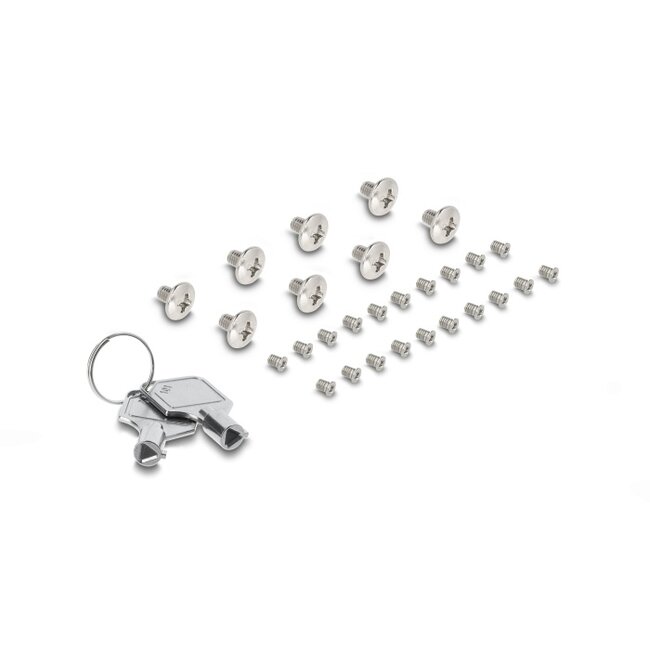

• 2 x keys
• Screws
• User manual
