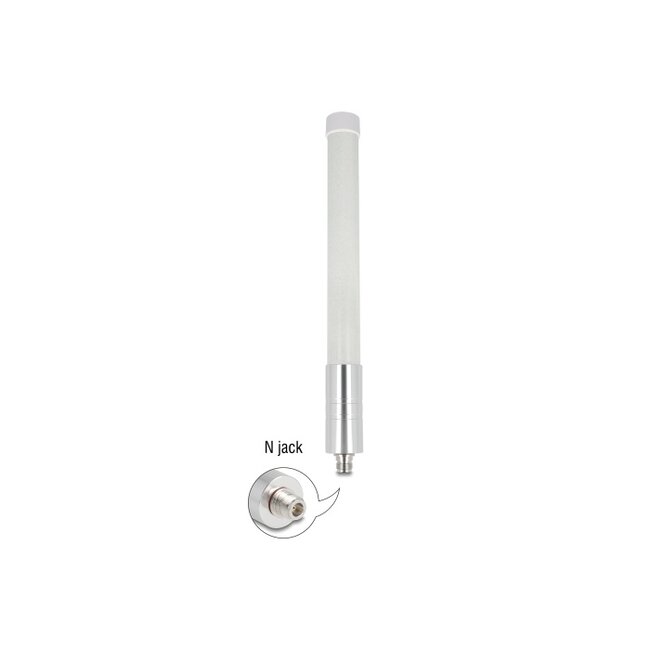

This antenna by Delock allows the usage of different LTE, GSM and UMTS bands outside. It is completely compatible to Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave and LoRa 868 MHz / 915 MHz.
Specification• Connector: 1 x N jack
• Frequency range:
698 - 960 MHz
1710 - 2700 MHz
• Antenna gain: 3 dBi
• Impedance: 50 Ohm
• VSWR: < 2.0
• Polarisation: vertical
• HBW horizontal beamwidth: 360°
• VBW vertical beamwidth: 70°
• Transmission power: max. 50 W
• Operating temperature: -40 °C ~ 80 °C
• Housing material: GFRP
• Colour: white
• Dimensions (LxD): ca. 333 x 32 mm
• Weight: ca. 357 g
• Device with a free N port
Package content
• LTE antenna

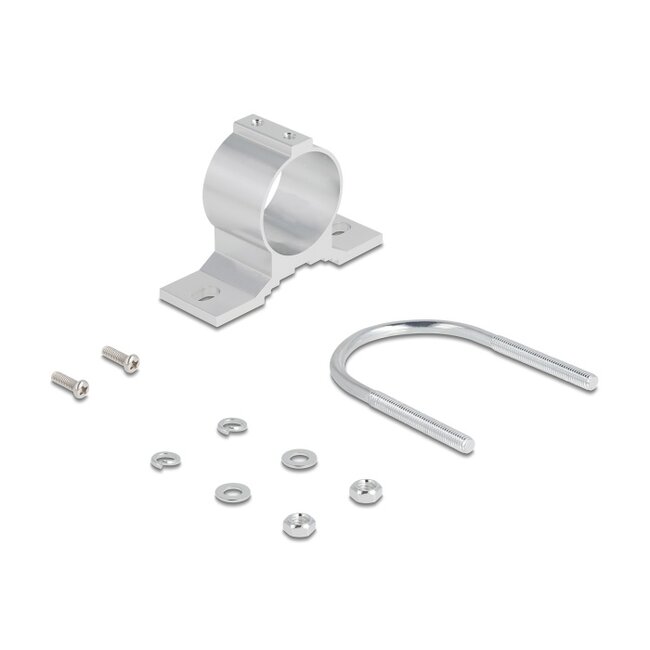

• Wall mounting bracket
• Pole mounting kit
