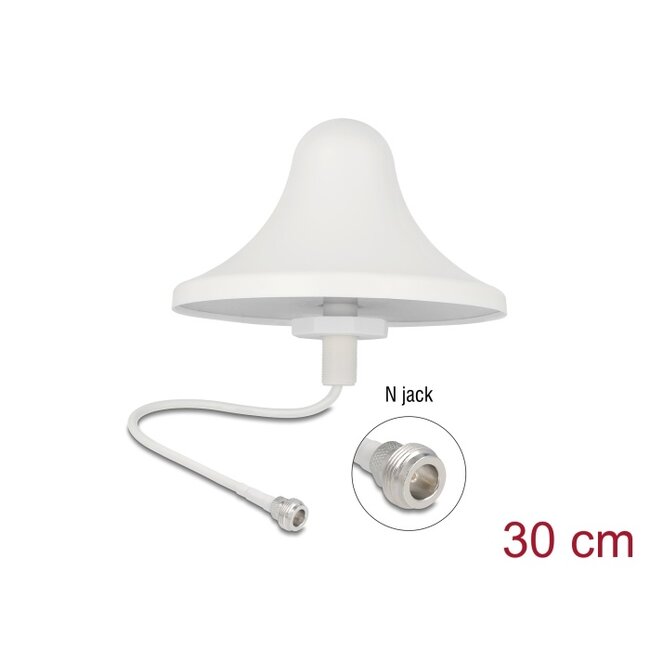

This antenna by Delock allows the usage of different 4G bands and 2.4 GHz WLAN indoors.
Specification• Connector: 1 x N jack
• Frequency range:
824 - 960 MHz
1710 - 2700 MHz
• Antenna gain: 3 dBi
• Impedance: 50 Ohm
• VSWR: < 2.0
• Polarisation: vertical
• Horizontal beamwidth: 360°
• Vertical beamwidth: 55°
• Transmission power: max. 5 W
• Operating temperature: -40 °C ~ 70 °C
• Housing material: ABS
• Cable type: coaxial
• Cable type: RG-58
• Cable diameter: ca. 4.95 mm
• Cable attenuation: 0.73 dB @ 1.0 GHz per meter
• Smallest bending radius: ca. 100 mm
• Cable length: ca. 30 cm
• Dimensions (Ø x H): ca. 187 x 85 mm
• Weight: ca. 140 g
• Device with a free N port
Package content
• Antenna
