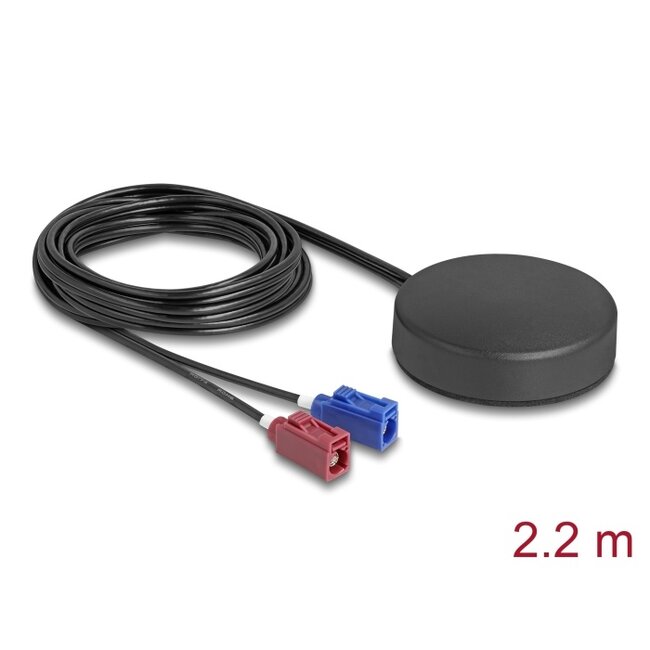

This multiband antenna by Delock has two physically separated transmitting and receiving units. Due to its outdoor features, the multiband antenna is well suitable for usage in harsh areas such as transportation, forestry, agriculture, construction and in the maritime sector. It is waterproof and can be used in the extended temperature range.
Specification• 4G:
• Connector:
1 x FAKRA D jack
FAKRA D: RAL 4004 Claret violet
Frequency range:
698 - 960 MHz
1710 - 2700 MHz
Antenna gain: 2 dBi
Impedance: 50 Ohm
VSWR:
< 2.5 @ 690 MHz
< 2.6 @ 824 MHz
< 1.4 @ 960 MHz
< 1.5 @ 1710 MHz
< 3.3 @ 2700 MHz
Polarisation: linear
Cable type: coaxial
Cable type: RG-174
Cable diameter: ca. 2.7 mm
• GNSS:
• Connector:
1 x FAKRA C jack
FAKRA C: RAL 5005 Signal blue
Frequency range:
GNSS: L1, 1575.42 MHz, 1598 - 1602 MHz
Antenna gain: 4 - 5 dBi
Impedance: 50 Ohm
VSWR: < 1.5
Polarisation: RHCP
Cable type: coaxial
Cable type: RG-174
Cable diameter: ca. 2.7 mm
• LNA GNSS:
Frequency range:
GNSS: L1, 1575.42 MHz, 1598 - 1602 MHz
Gain: 28 dB
Impedance: 50 Ohm
VSWR: < 2.0
Operating voltage: 2.7 - 5.0 V
Current consumption: 7 - 15 mA
• self-adhesive
• Operating temperature: -20 °C ~ 75 °C
• Housing material: ABS
• Colour: black
• Protection class: IP67
• Cable attenuation: 1.5 dB @ 2 GHz per meter
• Cable colour: black
• Cable length incl. connectors: ca. 2.2 m
• Dimensions (Ø x H): ca. 75 x 21 mm
• Device with multiple free FAKRA ports
Package content
• Multiband antenna
