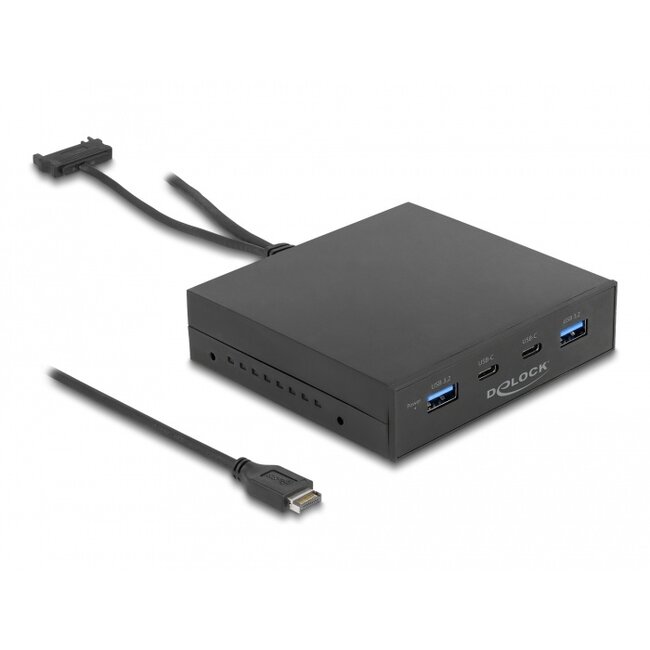

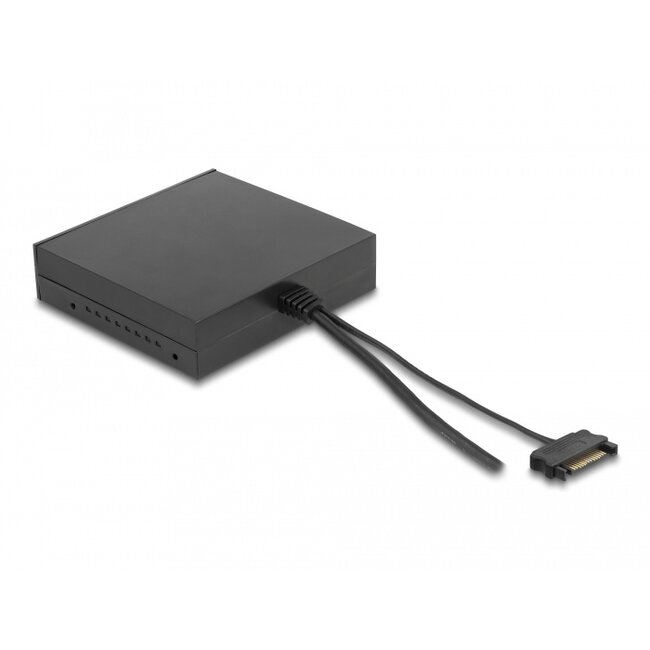

This front panel by Delock can be installed into a free 3.5″ bay of a computer. It has two USB Type-A and two USB Type-C™ ports. It will be connected to the motherboard internally via a USB key A male port.
Specification• Connectors:
external:
2 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-C™ female
2 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) Type-A female
internal:
1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) key A male
1 x SATA 15 pin plug (power supply)
• Data transfer rate up to:
SuperSpeed USB 10 Gbps,
SuperSpeed 5 Gbps,
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps
• Cable data:
1 x USB 3.2 key A male, length ca. 38 cm (without connector)
1 x power cable SATA 15 pin plug, length ca. 8 cm (without connector)
• Housing material: plastic
• Colour: black
• Hot Swap, Plug & Play
• Linux Kernel 3.3 or above
• Windows 8.1/8.1-64/10/10-64/11
• PC with one free 3.5″ bay
• Motherboard with a free USB key A female port
• Power supply with SATA 15 pin receptacle
Package content
• 3.5″ front panel
• Screws
• User manual
