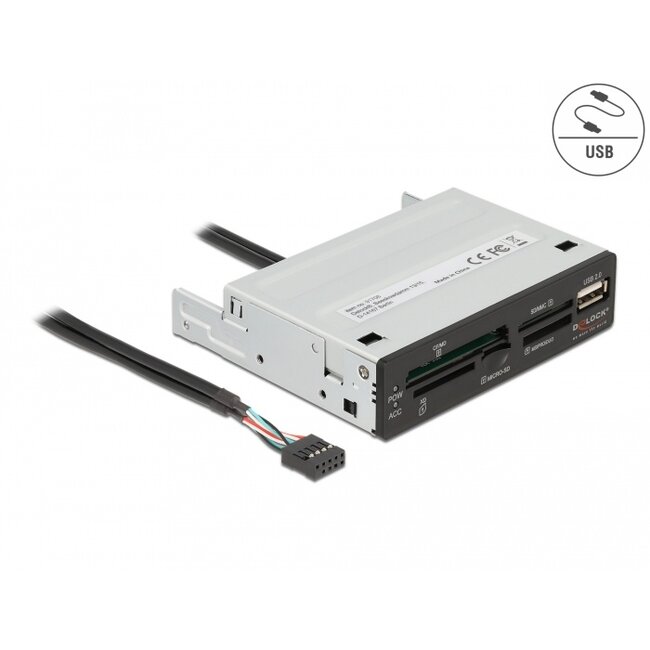

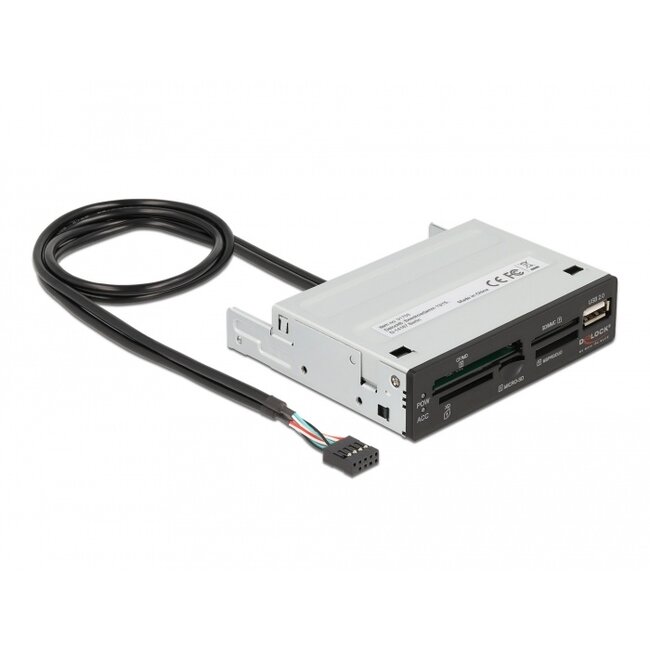

Description This card reader by Delock can be installed into a 3.5″ bay of a PC and will be connected to an internal USB 2.0 pin header male port. It has a five slot card reader and enables the connection of one USB device.

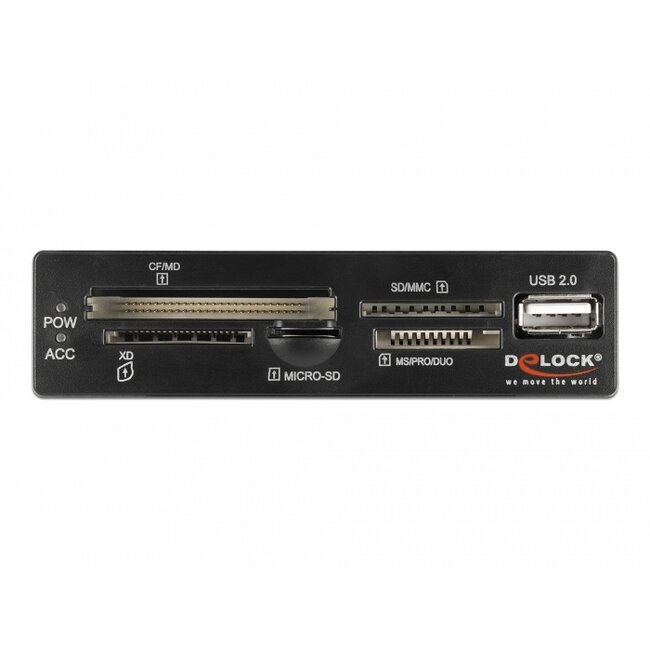

Specification • Connectors:
external:
1 x CF slot
1 x SD / MMC slot
1 x xD slot
1 x Micro SD slot
1 x MS slot
1 x USB 2.0 Type-A female
internal:
1 x 9 pin USB 2.0 pin header female
• Chipset: Realtek RTS5130
• Metal housing for installation into a 3.5″ bay
• Data transfer rate up to 480 Mbps
• Bootable
• LED indicator for the card reader for power (red) and access (green)
• Cable data:
1 x 9 pin USB 2.0 pin header female cable ca. 53 cm (incl. connector)
• Hot Swap, Plug & Play
• Supports following memory cards:
Slot 1
CF I, CF II, CF4.0, CF Ultra, CF Ultra DMA, CF Ultra II, CF Ultra III, CF Ultra IV,
CF Extreme, CF Extreme III, CF Extreme IV, Microdrive, MagicStor
Slot 2
SD, SD Pro, SD Ultra, SD High Capacity (SDHC), Turbo-SD, SDHC Turbo,
SD Ultra, SD Ultra II, SDHC Ultra, SDXC, SDXC Ultra, MMC-I, MMC-II, MMC plus,
MMC plus Turbo, MMC 4.0, Mini SD*, Mini SDHC*, Turbo Mini SD*, MMCmobile*,
RS-MMC*, RS-MMC 4.0*
Slot 3
xD, xD type M, xD type H
Slot 4
Micro SD, Micro SDHC, Micro SDHC Ultra, T-Flash, MMCmicro
Slot 5
MS Micro, MS-Pro Micro, MS-HG Micro, MS XC-HG Micro, M2
*Adapter is required
System requirements • Linux Kernel 5.11 or above
• Windows 8.1/8.1-64/10/10-64/11
• PC with one free 3.5″ bay
• Motherboard with a free 9 pin USB 2.0 pin header male
Package content
• 3.5″ card reader with connection cable

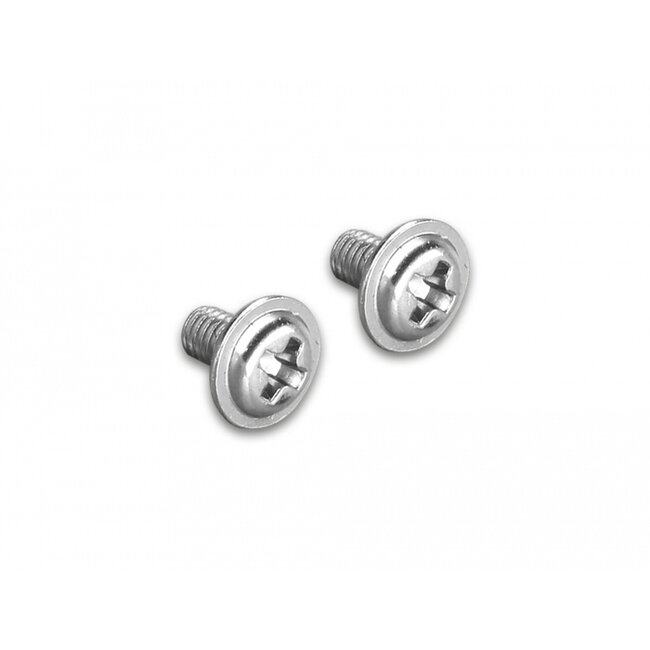

• Screws
• User manual
