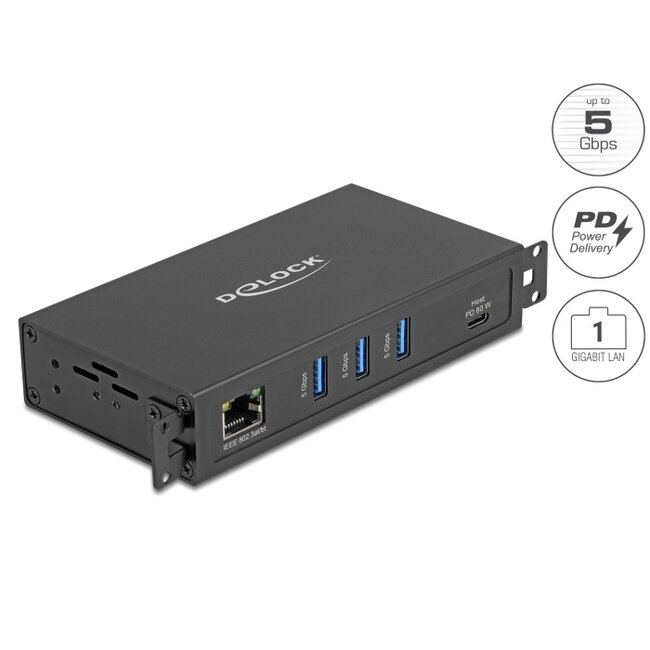

This solid USB hub by Delock with metal housing can be connected to a computer, laptop or mobile device via the USB-C™ interface. Up to 3 USB devices can be connected to the hub.
Integrated 10/100/1000 Mbps LAN PoE++ interface
In addition, the hub with integrated RJ45 Gigabit LAN connection expands a PC or laptop by a network interface.
The port also serves to power a device connected to the hub. Up to 60 W can be made available for the host device. Thus, the host device can be used continuously when a power source is available at the network port.
Electrical protection
The hub has a built-in DC/DC converter that supports a wide input voltage range. All outputs have overvoltage protection, short circuit protection and overtemperature protection, as well as 1500 V electrical isolation.
• Connectors:
1 x USB 5 Gbps USB Type-C™ female
3 x USB 5 Gbps Type-A female
1 x Gigabit LAN RJ45 jack
• Chipset: VIA VL817, Realtek RTL8153
• Data transfer rate:
Ethernet up to 10 Mbps (Half/Full Duplex)
Fast Ethernet up to 100 Mbps (Half/Full Duplex)
Gigabit Ethernet up to 1000 Mbps (Half/Full Duplex)
• Compatible with:
IEEE 802.3: 10BASE-T
IEEE 802.3u: 100BASE-TX
IEEE 802.3ab: 1000BASE-T
• Supports Auto MDI-X (automatic detection of standard or crossover network cable)
• Supports Wake On LAN (WOL)
• Supports IEEE 802.3az (Energy Efficient Ethernet)
• Supports IEEE 802.1Q Virtual LAN (VLAN)
• Support full duplex operation with IEEE 802.3x flow control and half duplex operation with back-pressure
• Supports IEEE 802.3at PoE+
• Supports IEEE 802.3bt PoE++
• Supports 4k Jumbo Frames
• Output power for host: max. 60 W
• 1.5 kV input and output isolation
• Surge Protection
• Short circuit protection
• Overheating protection
• Robust metal housing
• Dimensions (LxWxH): ca. 127 x 68 x 28 mm
• Colour: black
• Plug & Play
• Android 14.0 or above
• Chrome OS
• Linux Kernel 6.5 or above
• Mac OS 14.5 or above
• Windows 10/10-64/11
• iPad Air (4th Generation) or above
• iPad Pro (3rd Generation) or above
• Surface Pro 7
• Device with a free USB Type-C™ port or with a free Thunderbolt™ 3 or Thunderbolt™ 4 port
Package content
• USB hub + LAN

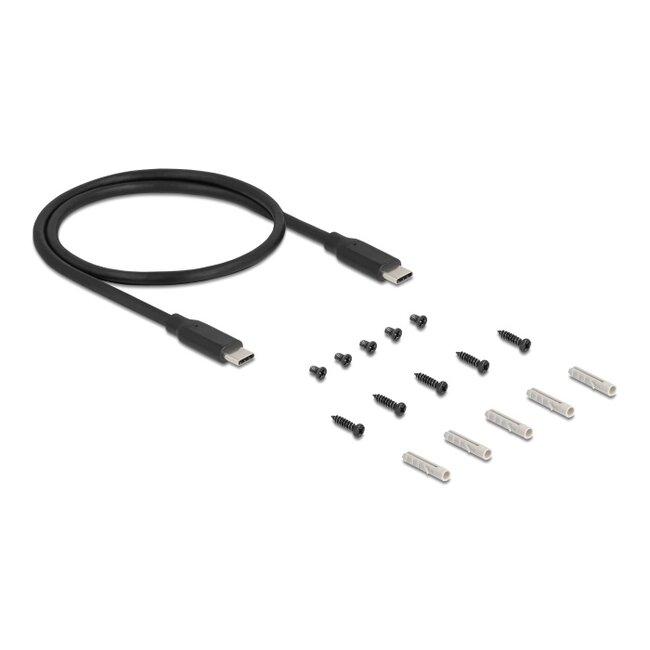

• Cable USB-C™ male to USB-C™ male, length ca. 60 cm
• User manual
