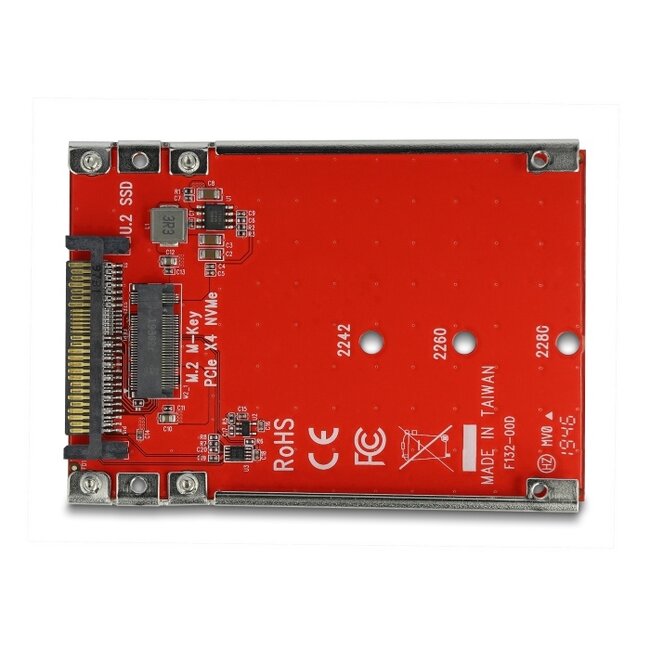

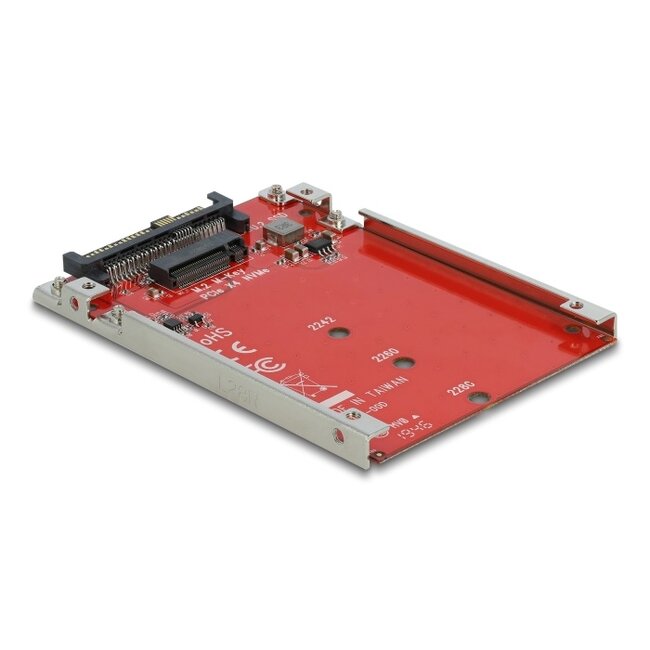

This Delock converter enables the connection of a M.2 SSD in 2280, 2260 and 2242 format. The converter can be installed into your system internally through the U.2 68 pin interface.
Specification• Connectors:
1 x U.2 SFF-8639 male >
1 x 67 pin M.2 key M slot
• Interface: PCIe x4 Rev. 4.0
• Supports M.2 modules in format 2280, 2260 and 2242 with key M or key B+M based on
PCIe
• Maximum height of the components on the module: 1.5 mm, application of double-sided
assembled modules supported
• Supports NVM Express (NVMe)
• Maximum output power: 16.5 Watt (3.3 V / 5 A)

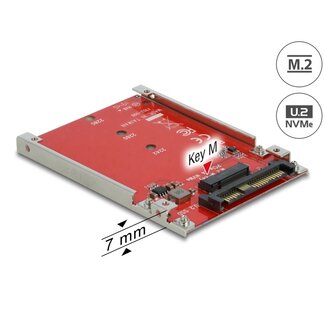

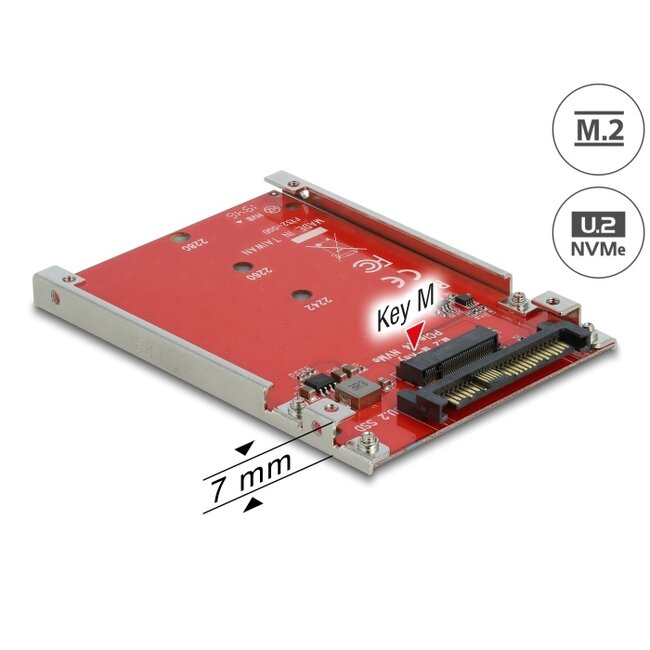

• Dimensions (LxWxH): ca. 100 x 70 x 7 mm
• OS independent, no driver installation necessary
• Windows 7/7-64/8.1/8.1-64/10/10-64/11

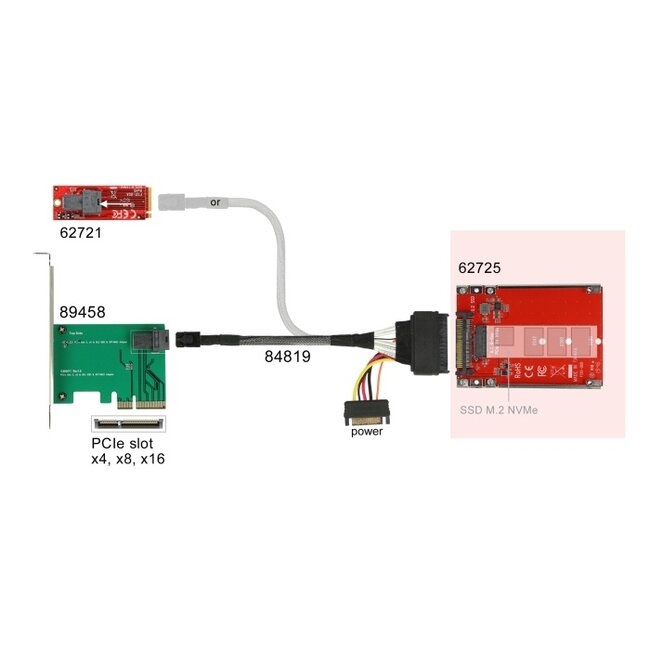

• A free U.2 SFF-8639 interface or
• A free SFF-8643 interface
Package content
• Converter
• 2.5″ frame
• 1 x fixing screw for M.2 module
• 4 x screws for frame
• User manual
