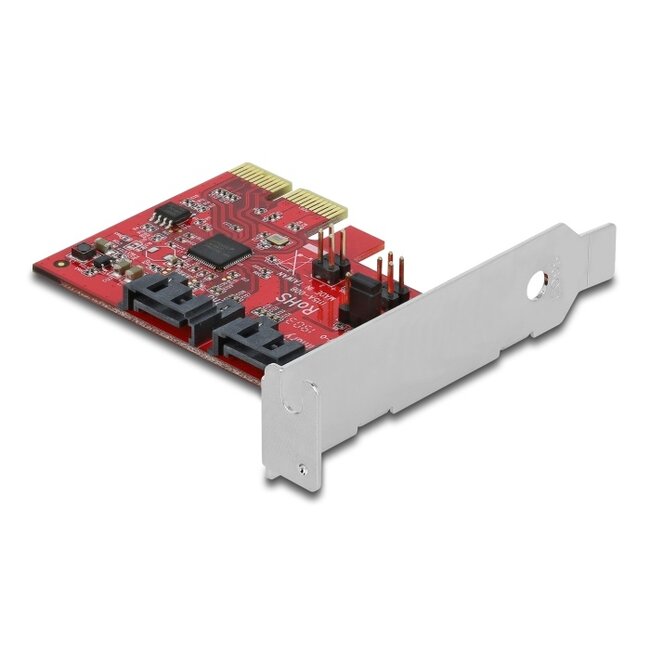

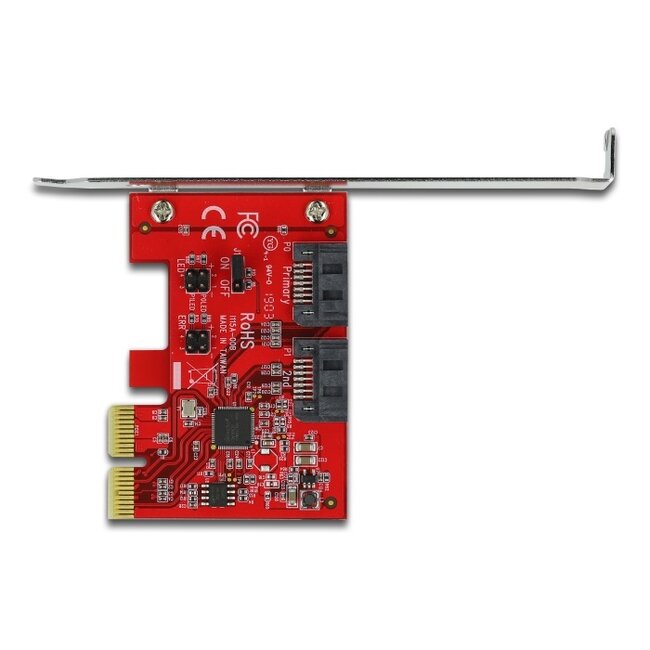

This PCI Express card by Delock expands the PC by two internal SATA ports. Different devices such as SSDs, hard drives, DVD-drives etc. can be connected to the card.
RAID 1
The special feature of this PCIe card is that an SSD / HDD, which already contains data, does not need to be formatted in order to build a RAID 1 group with a second SSD / HDD. The data of the existing SSD / HDD will be mirrored to a new one.

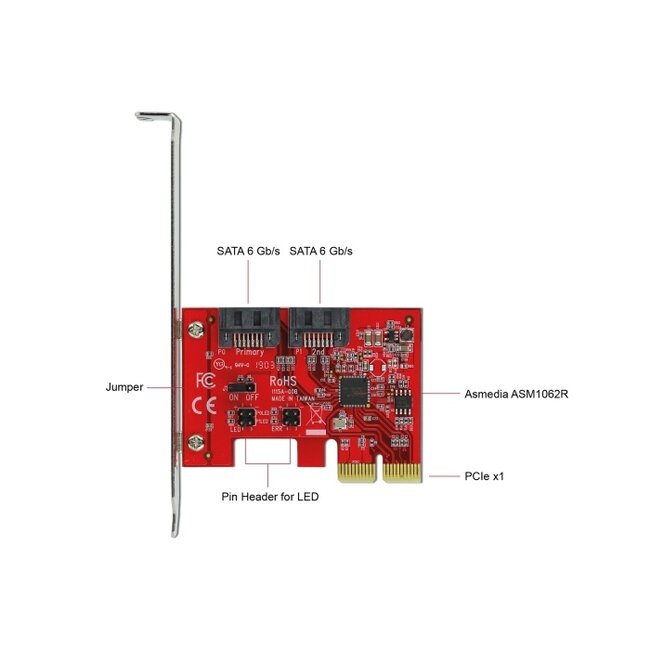

• Connectors:
2 x SATA 6 Gb/s 7 pin plug
1 x PCI Express x2, V2.0
4 x 2 pin pin header for LED
• Chipset: Asmedia ASM1062R
• Supports RAID 1
• Jumper for RAID mode ON / OFF
• Supports Native Command Queuing (NCQ)
• Supports S.M.A.R.T.
• Supports TRIM
• Supports DevSleep
• Hot Plug
• Linux Kernel 3.3 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64/11
• PC with one free PCI Express x4 / x8 / x16 / x32 slot
Package content
• PCI Express card
• Low profile bracket
• Driver CD
• User manual
