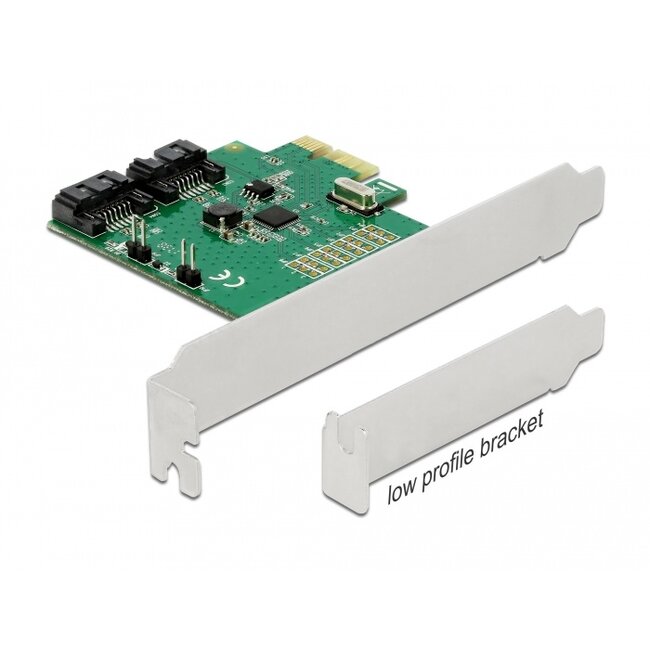

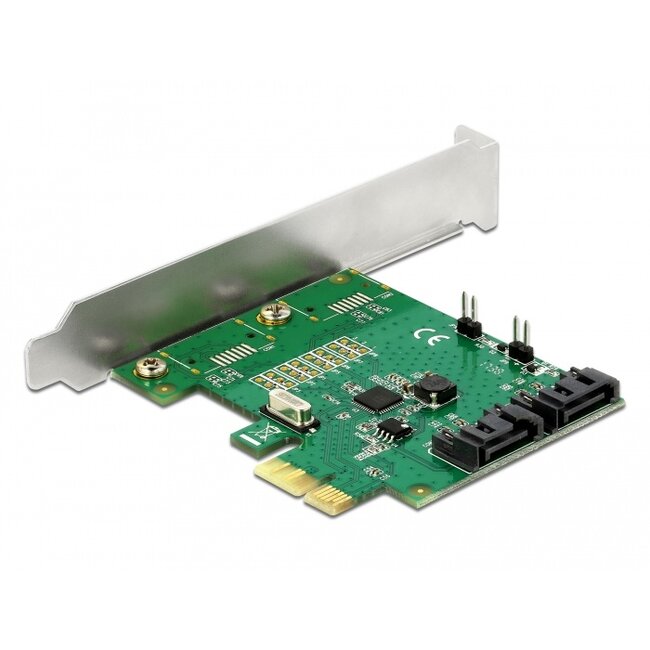

This PCI Express card by Delock expands the PC by two internal SATA ports. Different devices such as SSDs, hard drives, DVD-drives etc. can be connected to the card.
RAID
When using more than one SATA port, there is the possibility to use different RAID modes.

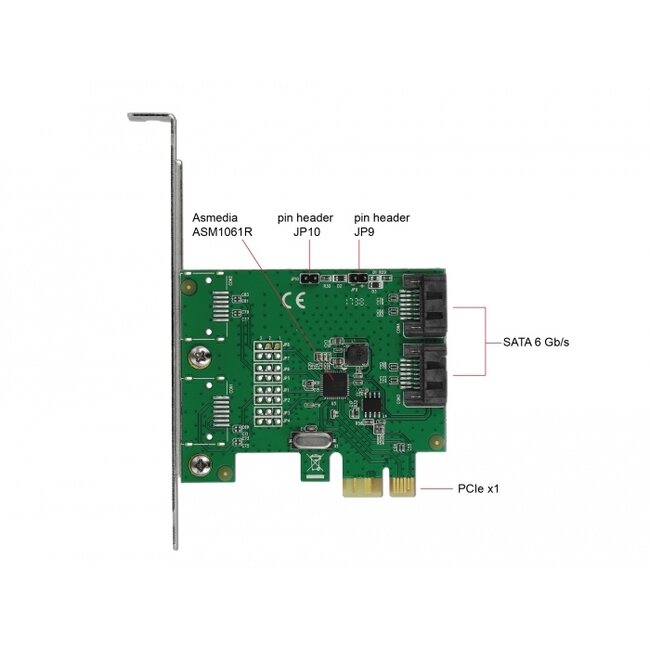

• Connectors:
2 x SATA 6 Gb/s 7 pin plug
1 x PCI Express x1, V2.0
2 x 2 pin pin header for LED
• Chipset: Asmedia ASM1061R
• Supports RAID 0, 1, SPAN
• Supports Native Command Queuing (NCQ)
• Supports S.M.A.R.T.
• Supports TRIM
• Supports DevSleep
• Hot Swap
• Bootable
• Linux Kernel 3.3 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64/11
• PC with one free PCI Express slot
Package content
• PCI Express card
• Low profile bracket
• LED cable
• Driver CD
• User manual
