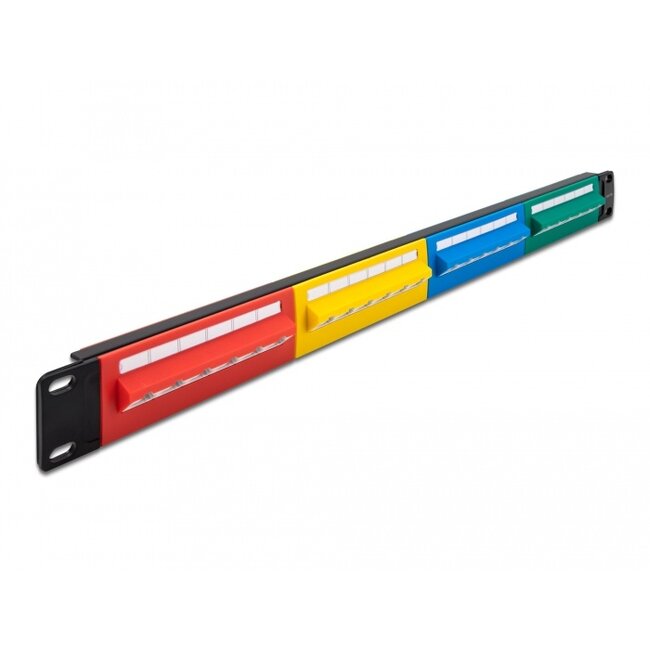

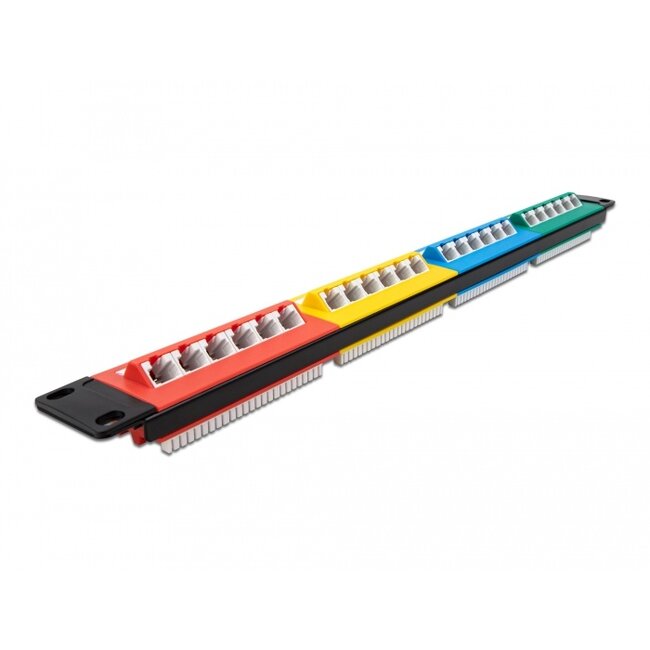

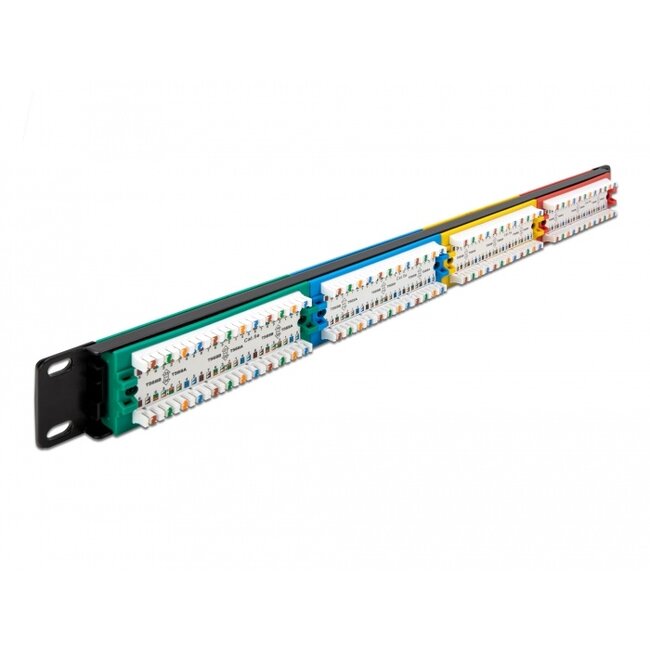

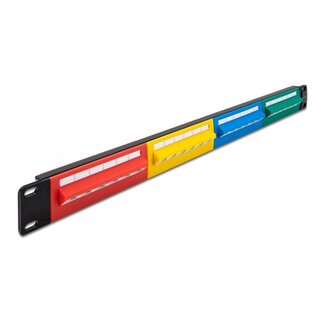

This patch panel by Delock can be mounted in a 19″ cabinet. Up to 24 network cables can be installed at the LSA blocks, using a punch down tool.
Specification• Connectors:
24 x RJ45 jack >
24 x LSA
• For mounting in 19″ network cabinet, 1U
• With labelling field
• Compliant with Cat.5e requirements of ANSI/TIA 568-C
• TIA-568A/B pinout
• For solid or stranded wire (26 - 22 AWG)
• Material: metal / plastic
• Colour: red, yellow, blue, green
• Dimensions (LxWxH): ca. 482.6 x 44.5 x 33.4 mm
• 19″ patch panel
• 4 x cable tie 4.6 x 200 mm
• 4 x screw M6 x 16 mm
