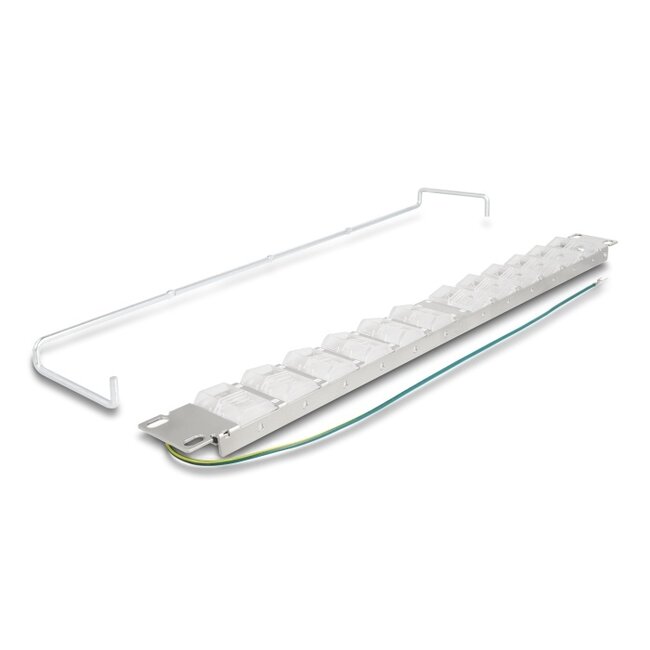

This patch panel by Delock can be mounted in a 19″ cabinet. With its standardized dimensions, it is suitable for easy snap-in mounting of 24 Keystone modules.

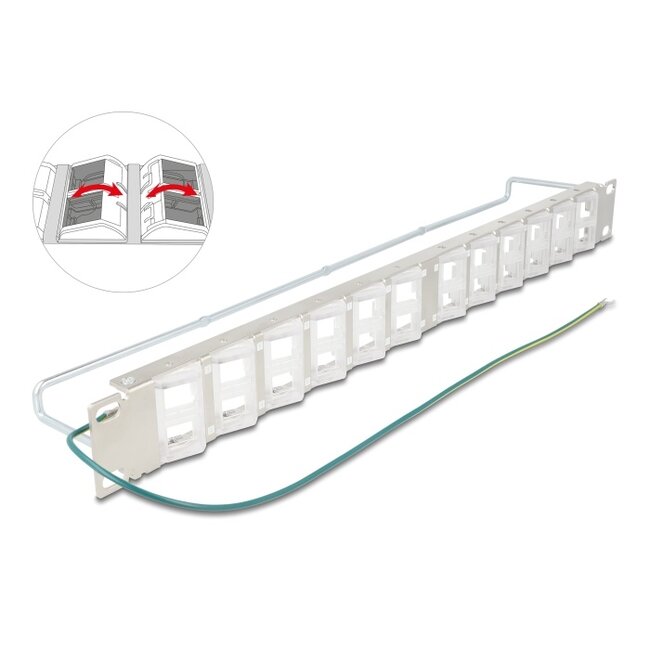

With tiltable Keystone ports
The tiltable Keystone ports allow for an angled and space saving installation of cables.

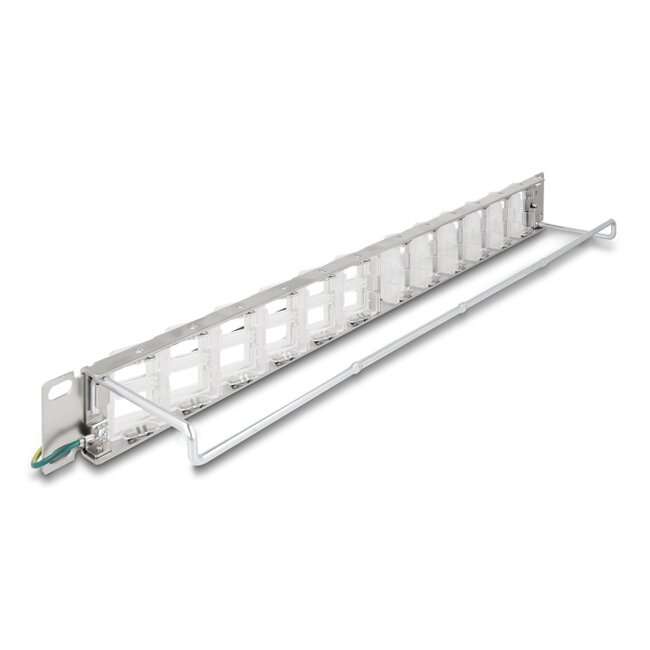

Cable fixing for optimal cable management
On the back of the patch panel, the cables can be fixed with cable ties to enable clear and orderly cable routing.
Note
Due to the narrow design only keystone modules up to max. 17.5 mm width can be used.
• For mounting in 19″ network cabinet, 1U
• 24 x Keystone port tiltable 19.2 x 14.9 mm
• Material: metal / plastic
• Colour: black
• Dimensions (LxWxH): ca. 482.6 x 78.4 x 44.2 mm
• 19″ patch panel
• Ground wire

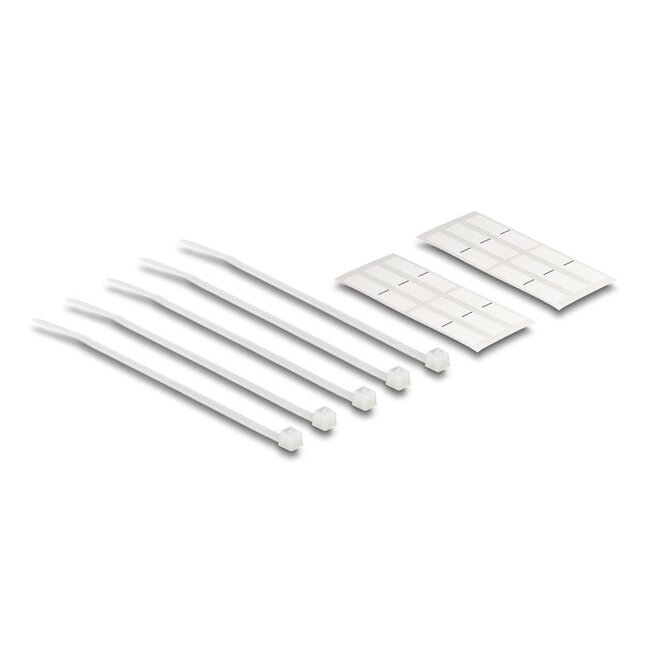

• 2 x inscription label
• 6 x cable tie
