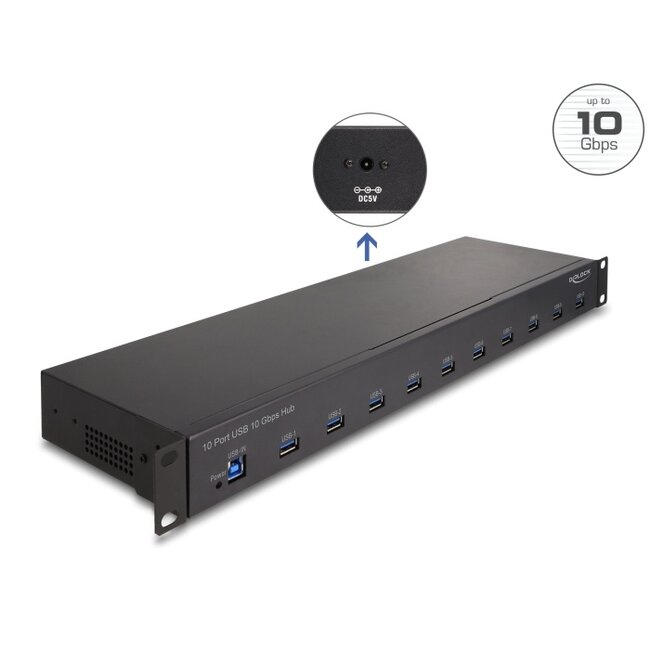

This solid industry capable USB hub by Delock with metal housing can be connected to a computer via the USB Type-A interface. It expands the computer by 10 USB Type-A ports. The hub can be used for automation and office applications.
19″ rack mounting
With the supplied mounting brackets, the hub can be mounted in a 19″ rack.
• Connectors:
1 x USB 10 Gbps Type-B female
10 x USB 10 Gbps Type-A female
1 x 5 V DC jack 5.5 x 2.1 mm
• Chipset: VIA VL822
• Data transfer rate up to 10 Gbps
• Robust metal housing
• Removable 19″ rack brackets
• LED indicator for power
• Operating temperature: 0 °C ~ 60 °C
• Dimensions (LxWxH): ca. 440 x 135 x 45 mm
• Colour: black
• Plug & Play
Power supply specification
• Power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 1.5 A
• Output: 5.0 V / 6.0 A / 30.0 W
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 9 mm
• Linux Kernel 5.15 or above
• Mac OS 12.4 or above
• Windows 10/10-64/11
• PC or laptop with a free USB Type-A port

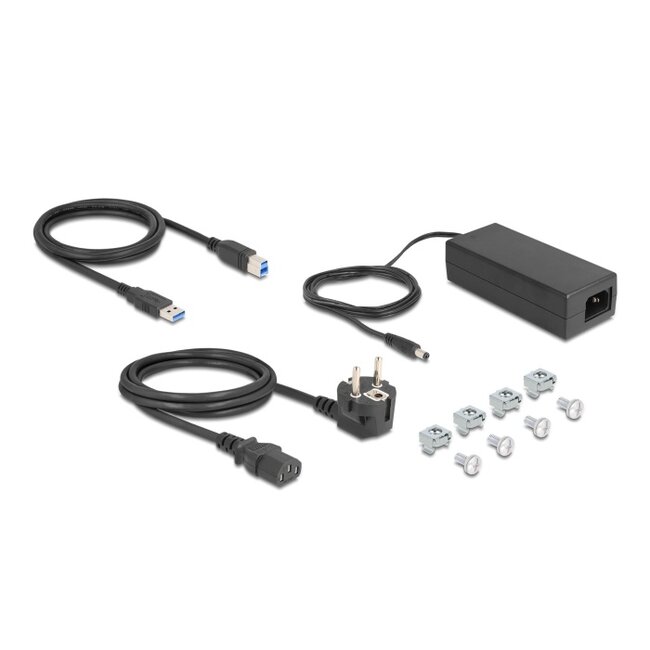

Package content
• Hub USB
• 1 x cable USB A male to USB B male, length ca. 1.20 m
• 2 x mounting brackets for 19″ rack
• Power supply
• User manual
