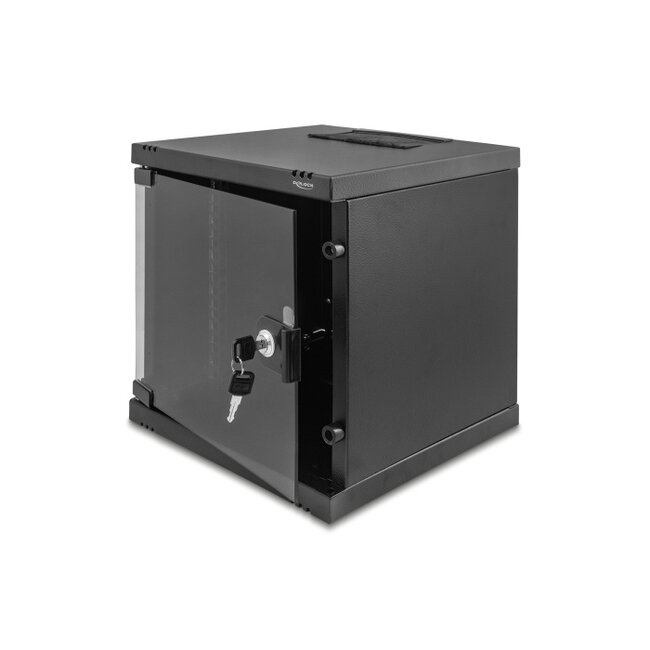

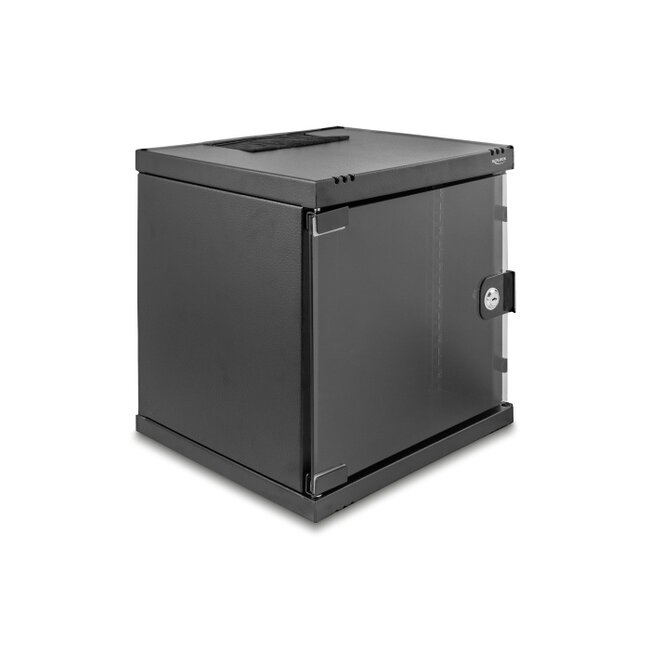

This mini network cabinet by Delock can be used for stand or wall mounting and is ideal for the installation of 10″ devices e.g. patch panels.

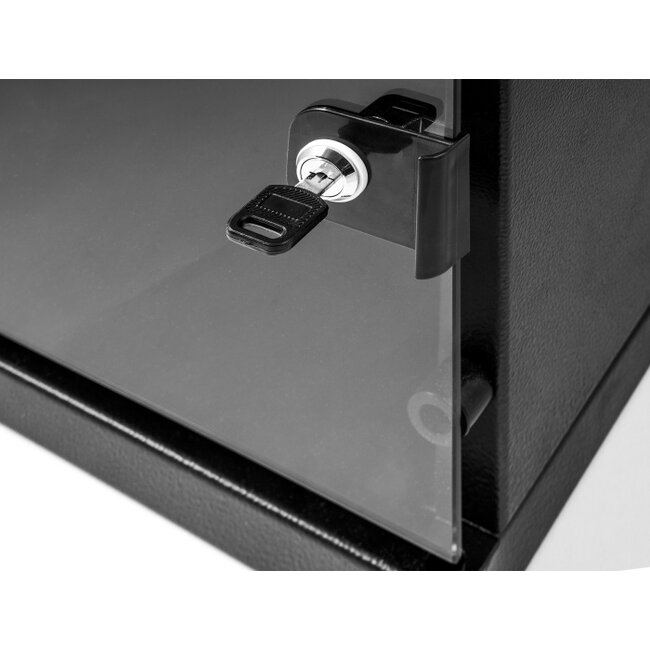

Front door lockable with viewing window
The 10-inch network enclosure can be locked to ensure greater security. The viewing window always provides an insight into the inside of the network cabinet.

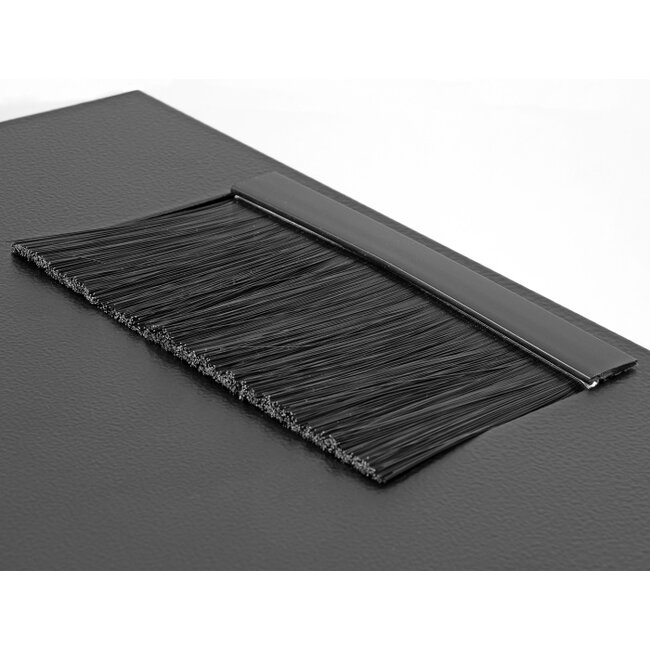

Optimal cable management with brush insert
The cable bushings on the top cover plate allow cables to be fed into the cabinet from above. The nylon brushes included on the upper feed-through prevent the ingress of dust and dirt.
Versatile applications
The home network cabinet is perfect for smaller network environments and enables secure and tidy installation of IT equipment.
• 10″ network cabinet for stand or wall mounting, 6U

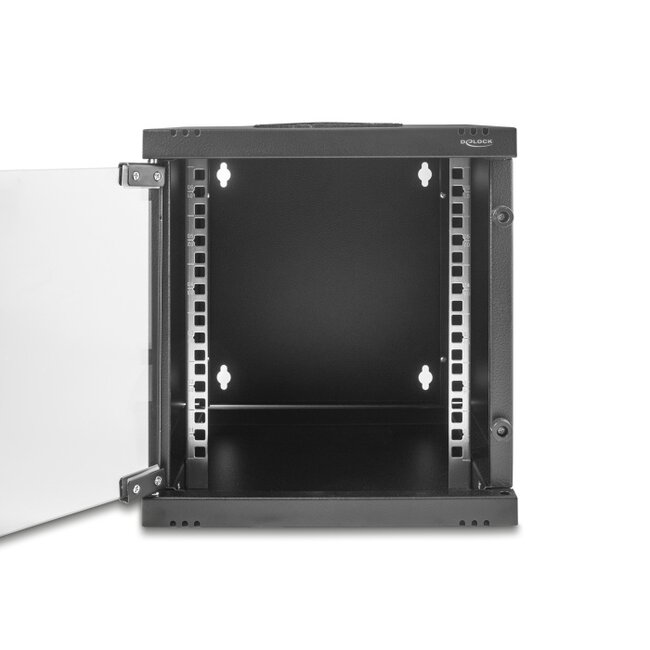

• 2 profile rails on the front, adjustable depth
• Front door with safety glass, lockable
• Cable bushing in floor and at the top with brush insert (145 x 70 mm)
• Ventilation slots for airing and venting
• Mounting depth: max. 240 mm
• Load capacity: max. 30 kg
• Weight: ca. 8 kg
• Protection class: IP20
• Colour: black
• Material: SPCC 1.2 mm steel sheet with powder coating
• Dimensions (LxWxH): ca. 330 x 312 x 300 mm

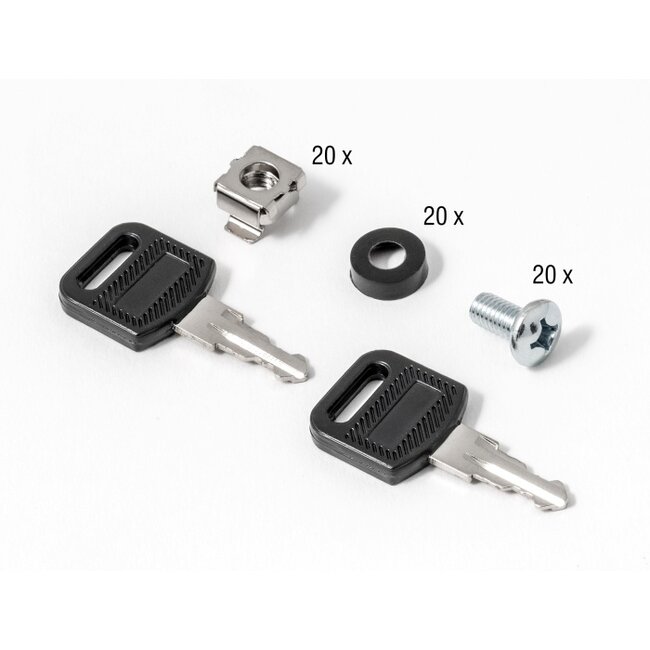

• Network cabinet
• 2 x keys
• 20 x screw M6
• 20 x washer
• 20 x caged nut
