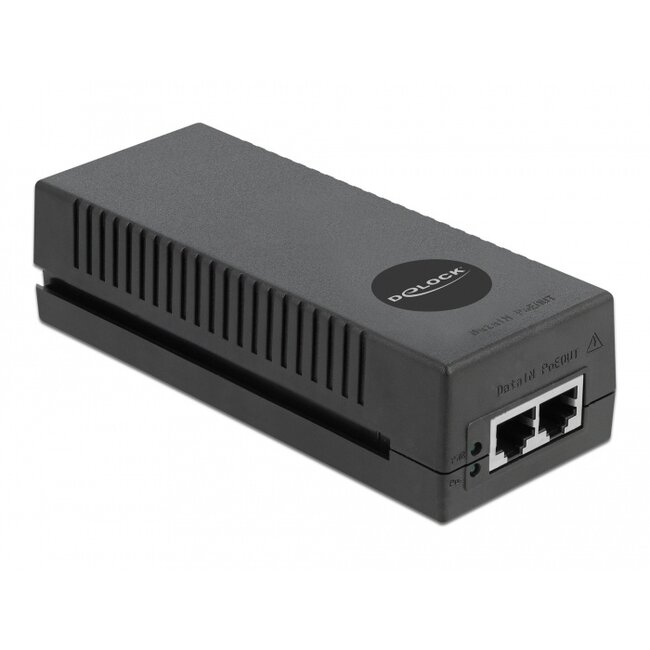

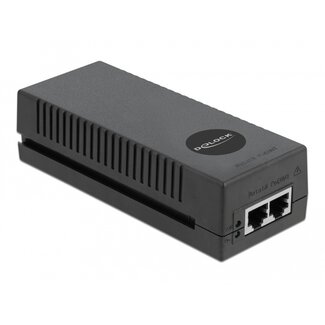

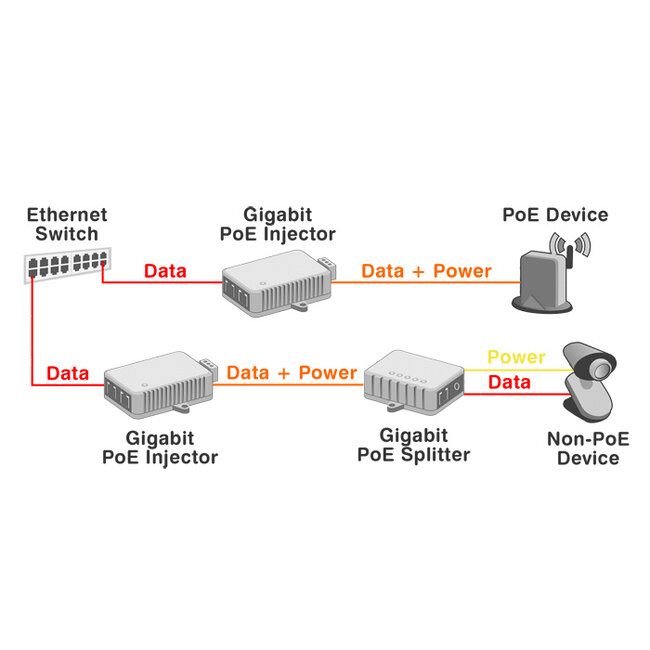

This Power over Ethernet injector by Delock can supply power via a network cable to a PoE-enabled device, such as an IP camera or a PoE splitter. The injector is connected between the network switch and the PoE device (PD) and provides the device with up to 30 watts of power and 10 Gbps Ethernet. The compact size and integrated wall mounting enable space-saving installation.
Specification• Connectors:
1 x RJ45 jack
1 x RJ45 jack PoE
1 x IEC C14 connector
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.6 A
• Output: DC 52 V / 0.58 A (30 W)
• Data transfer rate:
Ethernet up to 10 Mbps
Fast Ethernet up to 100 Mbps
Gigabit Ethernet up to 1 Gbps
NBASE-T with up to 2.5 Gbps and 5 Gbps
10 Gigabit Ethernet up to 10 Gbps
• LED indicator for power and PoE
• Supports IEEE 802.3af PoE
• Supports IEEE 802.3at PoE+
• Phantom power (Mode A, pairs 1/2 and 3/6)
• Overload protection
• Short circuit protection
• Wall mounting integrated in the housing
• Stackable
• Dimensions (LxWxH): ca. 145 x 61 x 39 mm
• Device with one free RJ45 port
Package content
• PoE injector
• Power cord
• User manual
