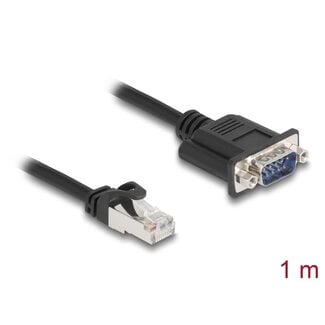

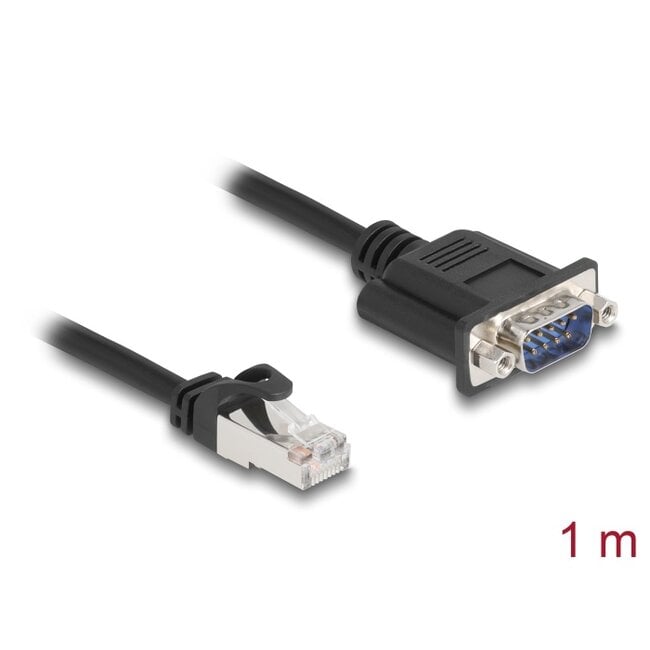

This CAN bus adapter cable is compatible with the RJ45 and D-Sub 9 connectors of various USB to CAN bus Ixxat devices in the CAN Low Speed / High Speed / Flexible Data Rate versions. It also enables fault tolerant CAN bus and LIN connections in the automotive sector.
Specification• Connectors:
1 x RJ45 plug
1 x serial RS-232 D-Sub 9 male with nuts
• Signals:

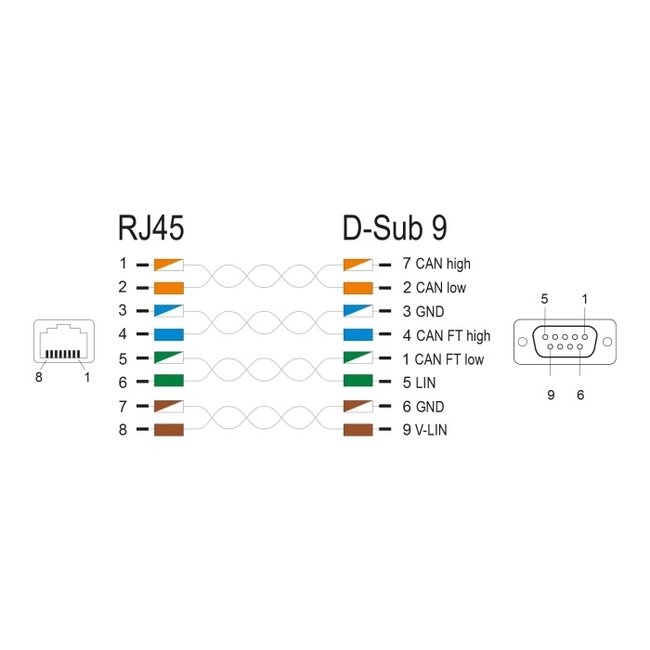

1 x RJ45: CAN high(1), CAN low(2), GND(3), CAN high FT(4), CAN low FT(5), LIN(6), GND(7), V-LIN(8)
1 x D-Sub 9: CAN high(7), CAN low(2), GND(3), CAN high FT(4), CAN low FT(1), LIN(5), GND(6), V-LIN(9)
• Cable type: Cat.5e
• Shielded (STP)
• Colour: black
• Cable length incl. connectors: ca. 1 m
• Suitable for various devices with USB to CAN bus interface of Ixxat
• Ixxat devices with PIN compatible RJ45 and D-Sub 9 connection
Package content
• CAN bus adapter cable
