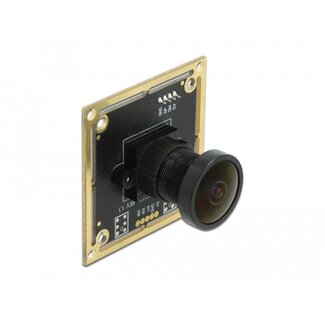

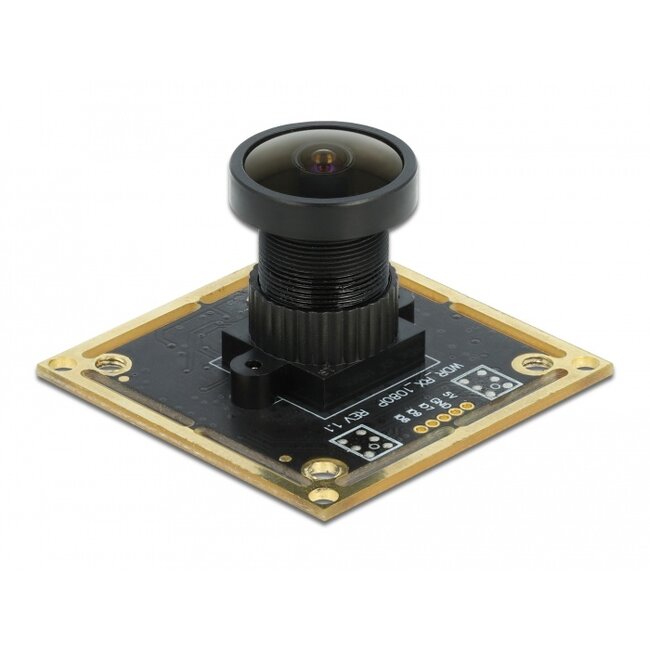

This USB 2.0 camera module by Delock offers in a compact construction a high resolution and low power consumption. It is ideally suited for installation in industrial components like IPCs, embedded systems, sensors and in device manufacture. The use of a photosensitive sensor with back side illumination (BSI) expands the scope of this module.
WDR - Wide Dynamic Range
It allows the adjustment of the brightest and darkest parts of the image to improve the quality of the still image.

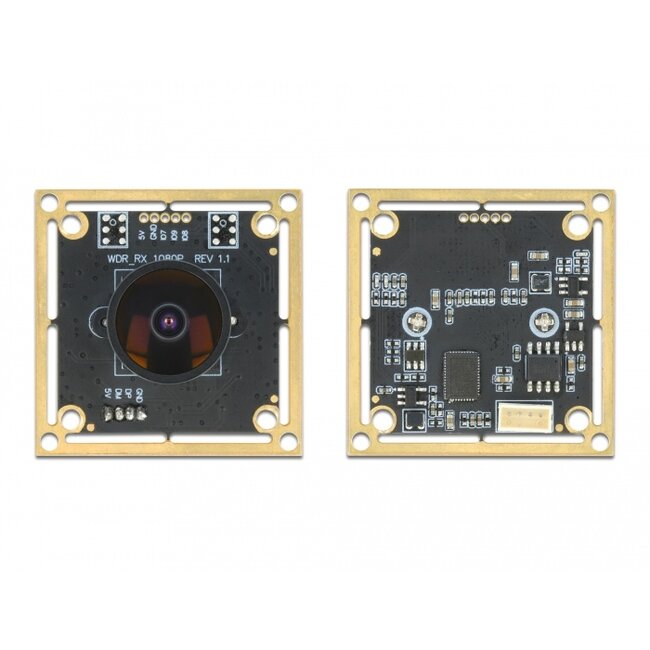

• Connector: 1 x 4 pin USB 2.0 pin header female SMT, pitch 1.5 mm
• Pin assignment:
Pin 1 - GND
Pin 2 - USB D+
Pin 3 - USB D-
Pin 4 - VCC
• Resolution: 1.92 megapixel
• With optical IR filter
• Maximum resolution: 1920 x 1080
• Automatic image control functions including:
Automatic exposure control (AEC)
Automatic white balance (AWB)
Automatic band filter (ABF)
Automatic black-level calibration (ABLC)
• Image quality controls including colour saturation, gamma, sharpness (edge
enhancement), lens correction, white pixel canceling, noise canceling, and automatic
50 / 60 Hz luminance detection
• Current consumption:
sensor active: 160 mA ± 5 mA @ 1920 x 1080
• Operating voltage: 5 V DC
• Operating temperature: 5 °C ~ 50 °C
• Operating humidity: 0 ~ 80 %
• Sensor size: 1/2.7"
• Fix focus: 10 cm - infinite
• Aperture: F/2,5
• Frame rates:
30 fps @ 1820 x 1080
60 fps @ 1280 x 720
60 fps @ 800 x 600
120 fps @ 640 x 480
120 fps @ 320 x 240
• Dimensions (LxWxH): ca. 38 x 38 x 29 mm
• PC with UVC support
• Android 4.4 or above
• Linux Kernel 2.6.15 and above with Video4Linux
• Mac OS 10.5 or above
• Windows 8.1/8.1-64/10/10-64/11
• DirectX 9.0c or above
Package content
• Camera Module
