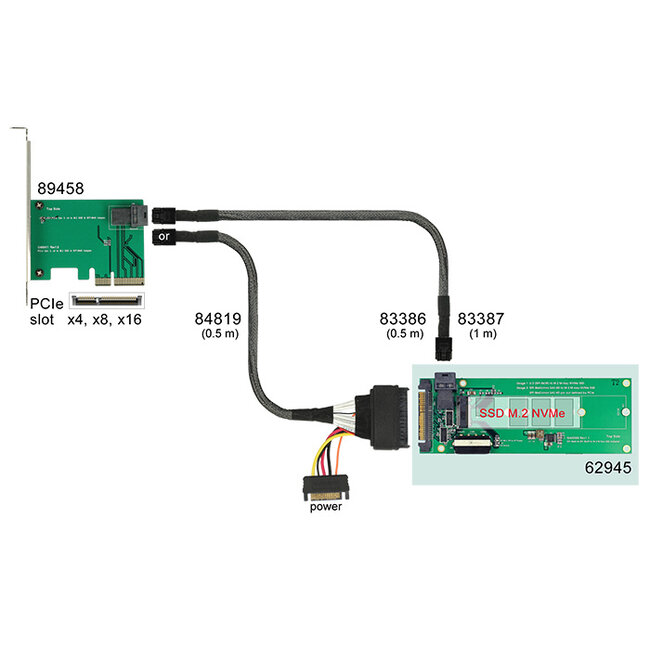

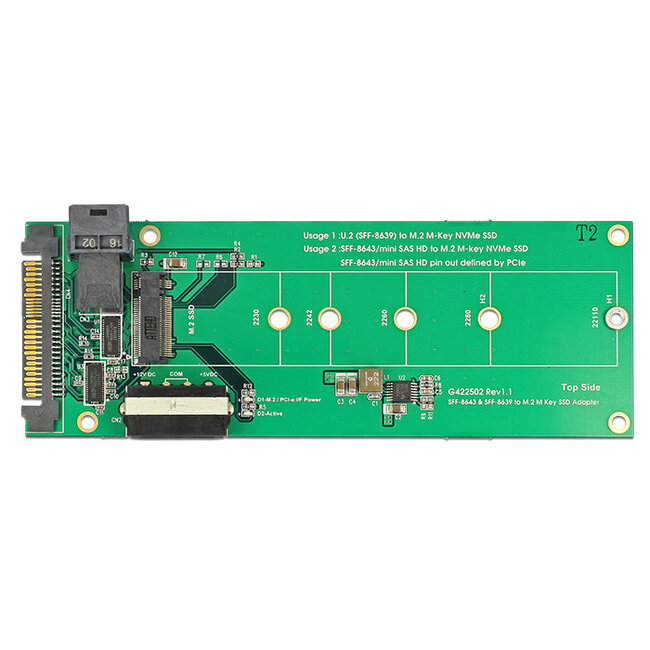

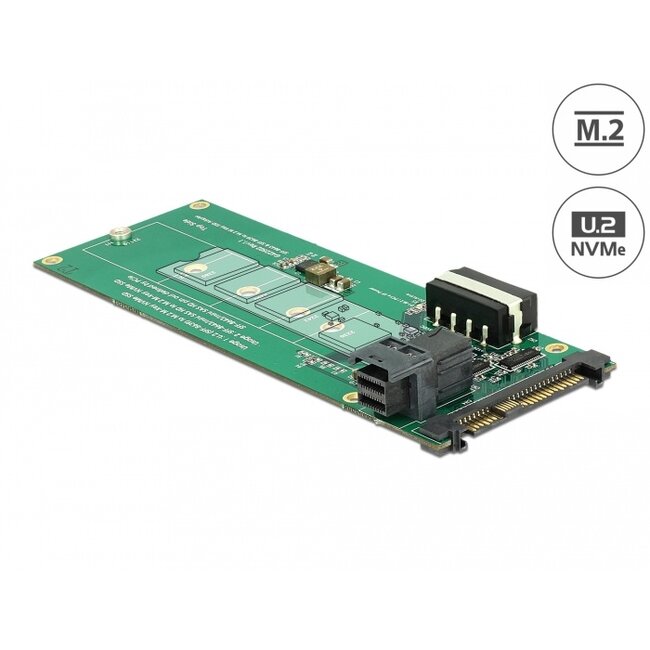

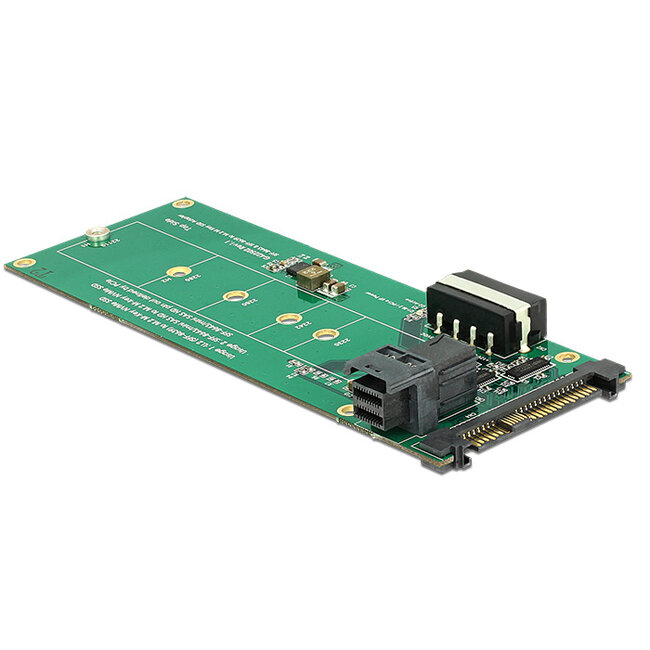

This Delock converter enables the connection of an M.2 SSD in 22110, 2280, 2260, 2242 and 2230 format. The converter can be installed into the system internally through U.2 SFF-8639 or U.2 SFF-8643 interface.
Specification• Connectors:
1 x 68 pin U.2 SFF-8639 male
1 x 36 pin SFF-8643 female
1 x 67 pin M.2 key M slot
1 x Molex 4 pin male
• Interface: PCIe
• Supports M.2 modules in format 22110, 2280, 2260, 2242 and 2230 with key M
or key B+M based on PCIe
• Maximum height of the components on the module: 1.35 mm,
application of double-sided assembled modules supported
• LEDs for power and activity
• Supports NVM Express (NVMe)
• Maximum output current: 4 A
• Over current protection, over heating protection
• ESD protection up to 2 kV
• Dimensions (LxWxH): ca. 145 x 52 x 16 mm
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 4.6.x
• A free U.2 SFF-8639 interface or
• A free U.2 SFF-8643 interface
Package content
• Converter

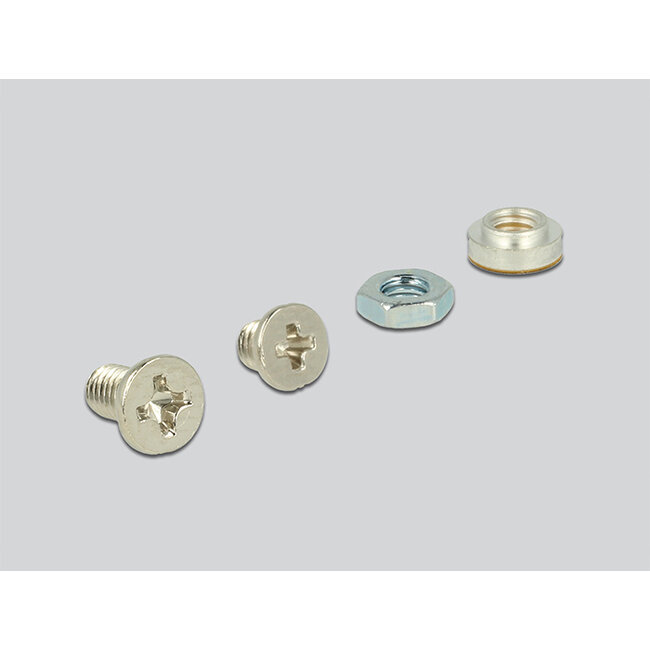

• Mounting material
• User manual
