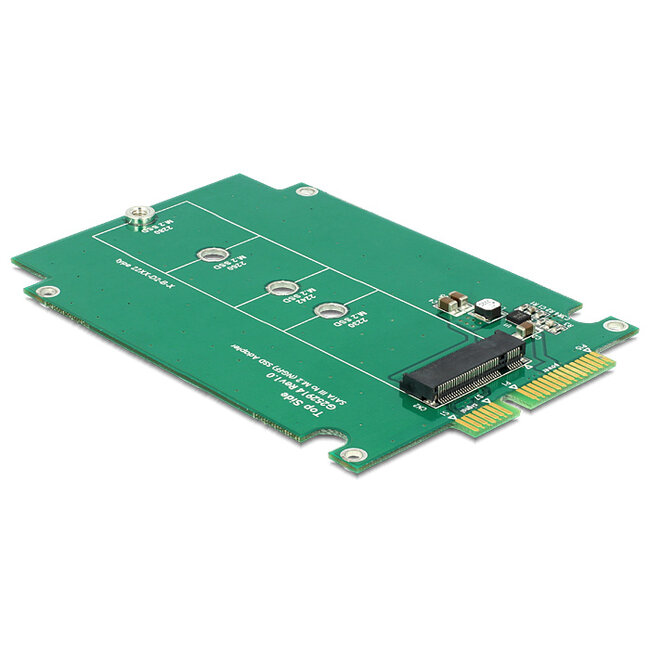

This Delock converter enables you to connect a M.2 NGFF SSD in 2280, 2260, 2242 and 2230 format which can be used as a 2.5″ HDD. The converter can be installed into your system internally through an SATA 22 pin interface.
Specification• Connector:
SATA 22 pin male > 67 pin M.2 NGFF key B slot
• Interface: SATA
• Form factor: 2.5″
• Supports M.2 NGFF modules in format 2280, 2260, 2242
and 2230 with key B or key B+M based on SATA
• Maximum height of the components on the module: 1.35 mm
application of double-sided assembled modules supported
• Bootable
• Data transfer rate up to 6 Gb/s

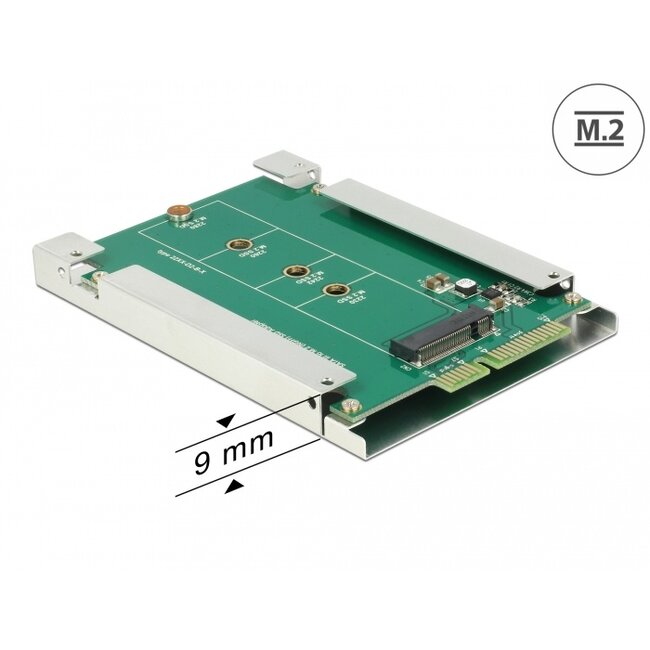

• Dimensions (LxWxH): ca. 100 x 70 x 9 mm
• OS independent, no driver installation necessary
• A free SATA 22 pin interface
Package content
• Converter

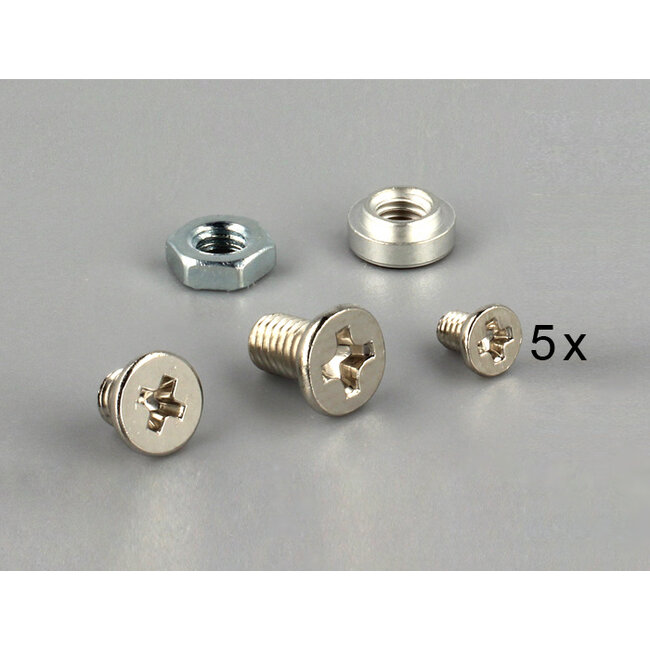

• 1 x fixing screw for M.2 module
• 5 x screws for frame
