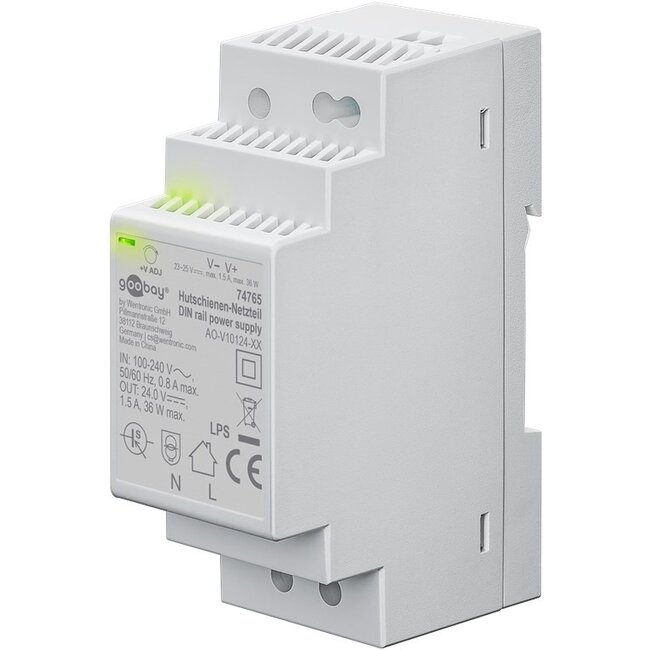

Description With 24 V, the DIN rail power supply is the ideal solution for building automation such as small PLCs and security technology, in which several devices with constant DC voltage (CV) and low power requirements are networked. The compact, staircase-shaped design makes the power supply unit perfect for confined spaces with demanding heat requirements, e.g. in control cabinets or distribution boxes.
Features - The 24 V power supply is suitable for control systems such as doorbell systems, networked lighting, heating or ventilation and for operating surveillance and alarm systems

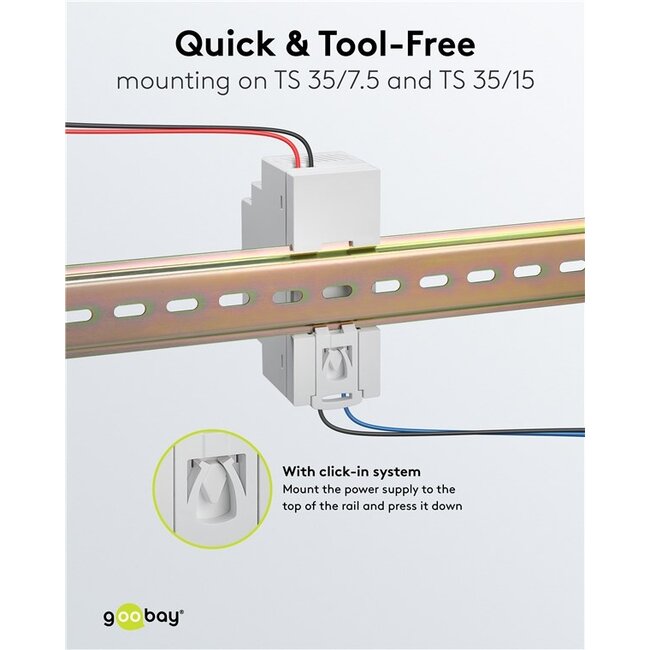

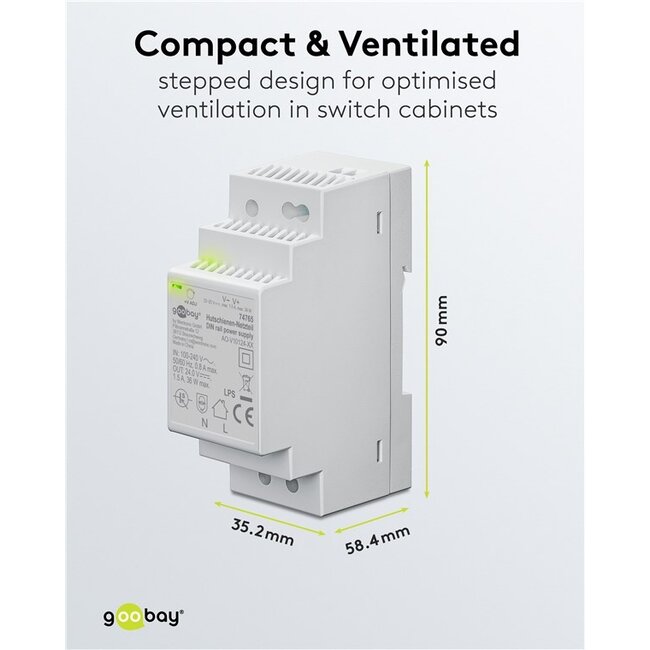

- 35.2 mm wide, it is particularly compact and can be quickly and easily mounted on a DIN rail with a top-hat profile, e.g. in a control cabinet, using a click system

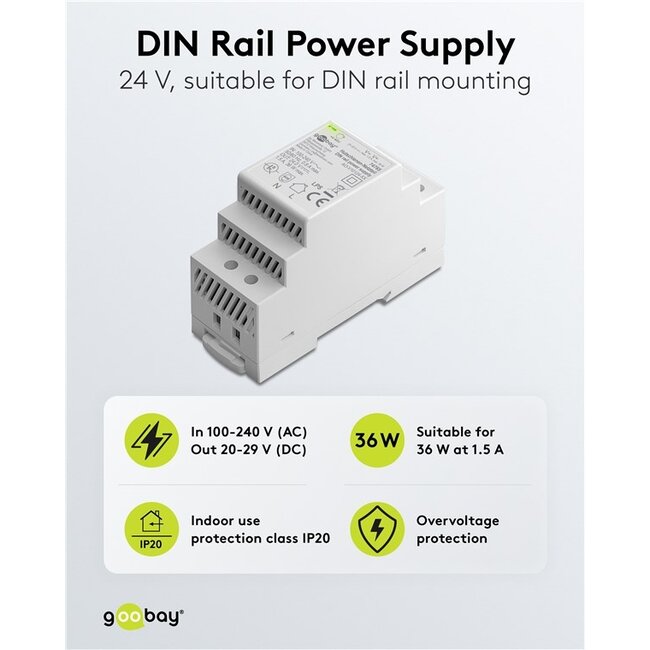

- The DIN rail transformer converts the input voltage in the range of 100-240 V (AC) at 50/60 Hz to 24 V constant DC voltage
- Features a variable DC output voltage of 20-29 V and high efficiency
- The switch-mode power supply is particularly safe thanks to overvoltage, overload and short-circuit protection, IP20 protection and safe electronic separation according to protection class II
- Features a variable DC output voltage of 20-29 V and high efficiency

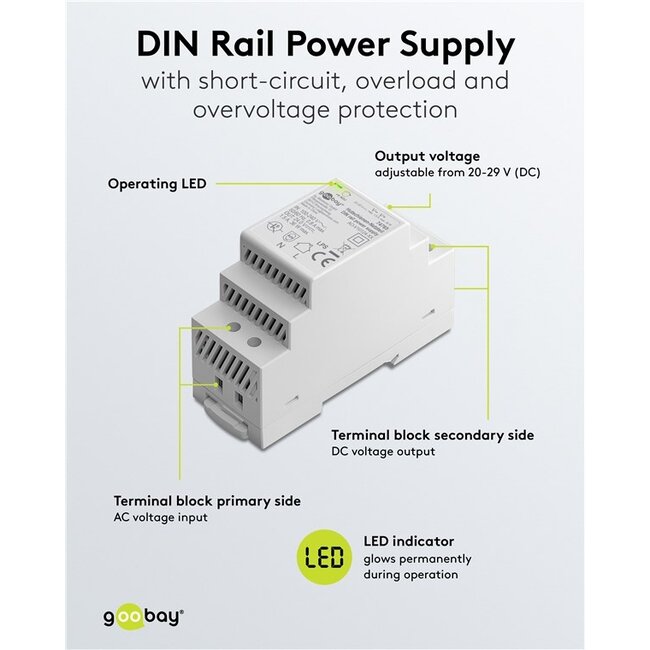

- With integrated LED display that glows permanently when the power supply is in operation and working properly
