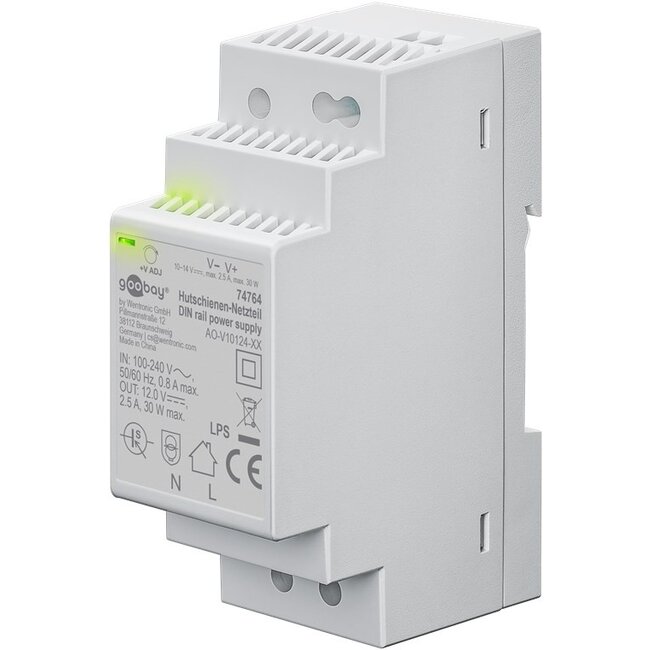

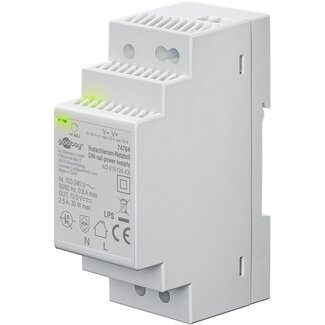

Description The DIN rail power supply is the ideal solution for devices that must be permanently ready for use and rely on a stable supply of constant DC voltage (CV), e.g. doorbells, access systems or sensors. The compact, staircase-shaped design makes the power supply perfect for confined spaces with demanding heat requirements, e.g. in control cabinets or junction boxes.
Features - The 12 V power supply is suitable for use as a doorbell transformer, for operating surveillance and access systems, door openers, door intercoms, doorbell systems, etc.

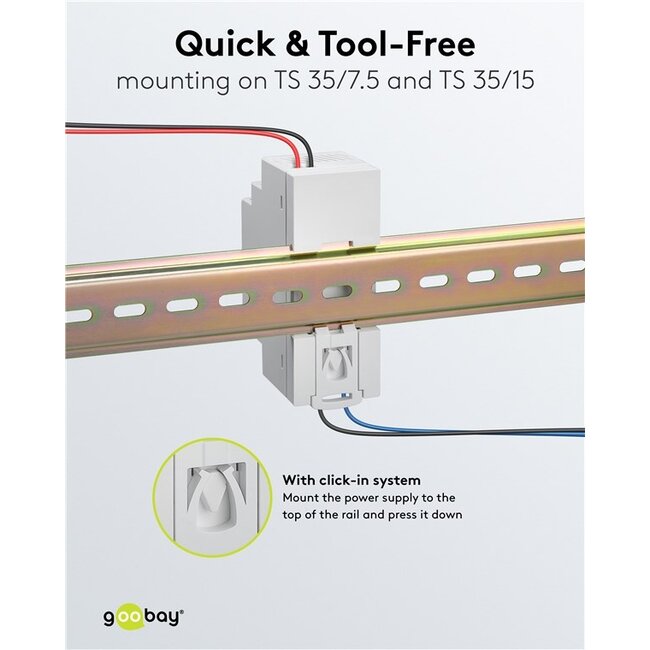

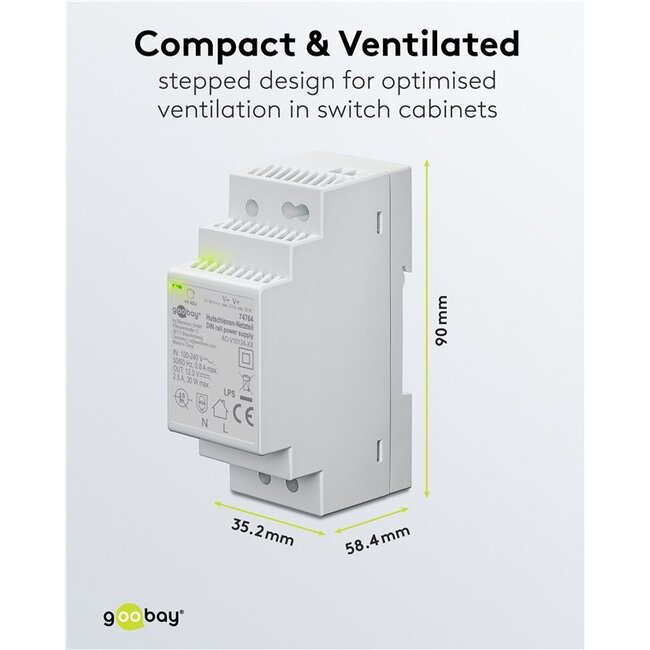

- 35.2 mm wide, it is particularly compact and can be quickly and easily mounted on a DIN rail with a top-hat profile, e.g. in a control cabinet, using a click system

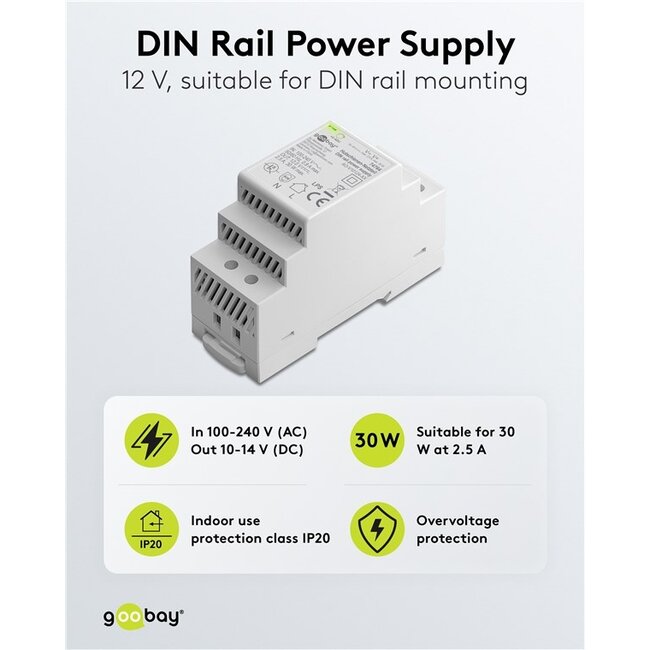

- The DIN rail transformer converts the input voltage in the range of 100-240 V (AC) at 50/60 Hz to 12 V constant DC voltage
- Features a variable DC output voltage of 10-14 V and high efficiency

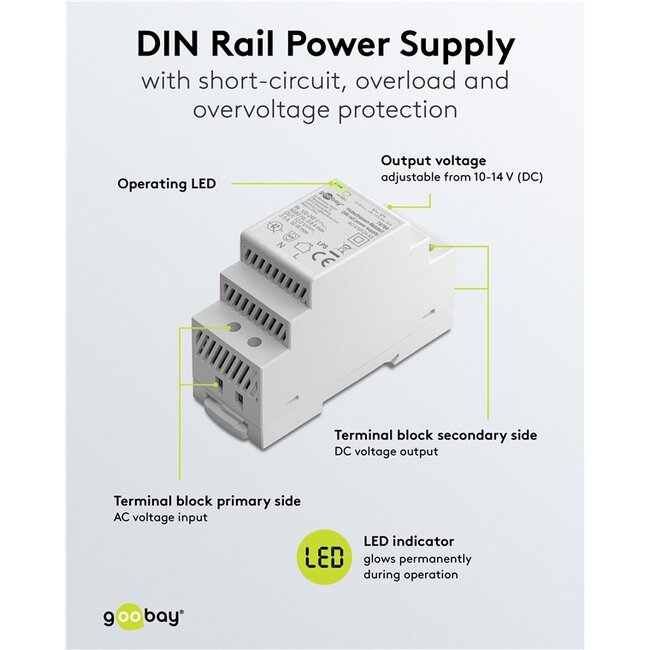

- The switch-mode power supply is particularly safe thanks to overvoltage, overload and short-circuit protection, IP20 protection and safe electronic separation according to protection class II
- Features a variable DC output voltage of 10-14 V and high efficiency
- With integrated LED display that glows permanently when the power supply is in operation and working properly
