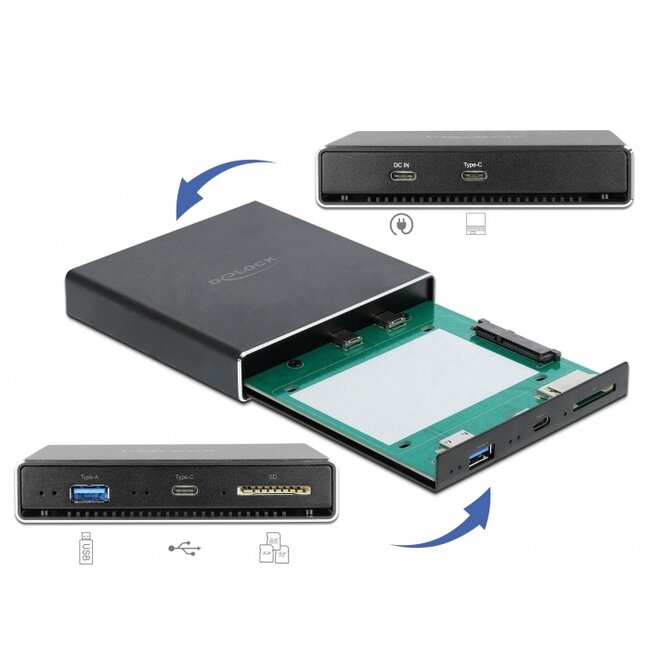

The aluminium enclosure by Delock enables the installation of a 2.5″ SATA HDD / SSD. Different USB devices can be connected to the USB Type-A and USB Type-C™ port. The SD slot could be used for reading and writing SD memory cards. The enclosure can be connected via USB cable to the PC or laptop.

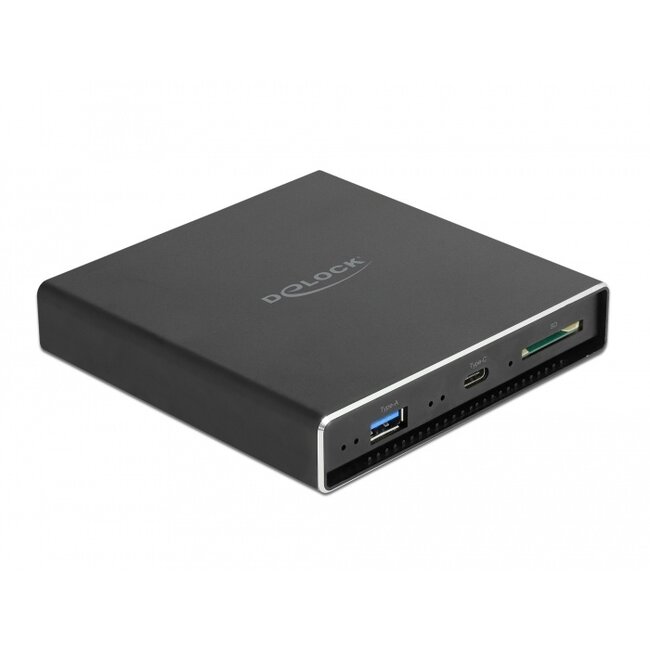

Sturdy housing with cooling fins
The sturdy metal housing has holes below the 2.5″ installation slot, which are located directly above the cooling fins when installed in the outer frame. This ensures optimum cooling of the enclosure and the built-in memory.
Additional power socket
The USB-C™ power socket is used for power supply to the devices and memory which are connected to the enclosure. The enclosure can also be operated without an additional power supply.
• Connectors:
external:
1 x SuperSpeed USB (USB 3.2 Gen 1) USB Type-C™ female >
1 x SuperSpeed USB (USB 3.2 Gen 1) USB Type-C™ female
1 x USB 3.0 Type-A female
1 x SD slot
1 x USB Type-C™ female (power supply 5 V)
internal:
1 x SATA 6 Gb/s 22 pin receptacle
• Chipset: JMicron JMS578, Genesys Logic GL3523, GL3224
• Data transfer rate up to 5 Gb/s
• 5 x LED indicator
• Metal housing
• Colour: black
• Dimensions (LxWxH): ca. 112 x 112 x 22 mm
• Hot Plug, Plug & Play
• Android 8.0 or above
• Chrome OS 72.0 or above
• Linux Kernel 3.18 or above
• Mac OS 10.14.5 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-A or USB Type-C™ port

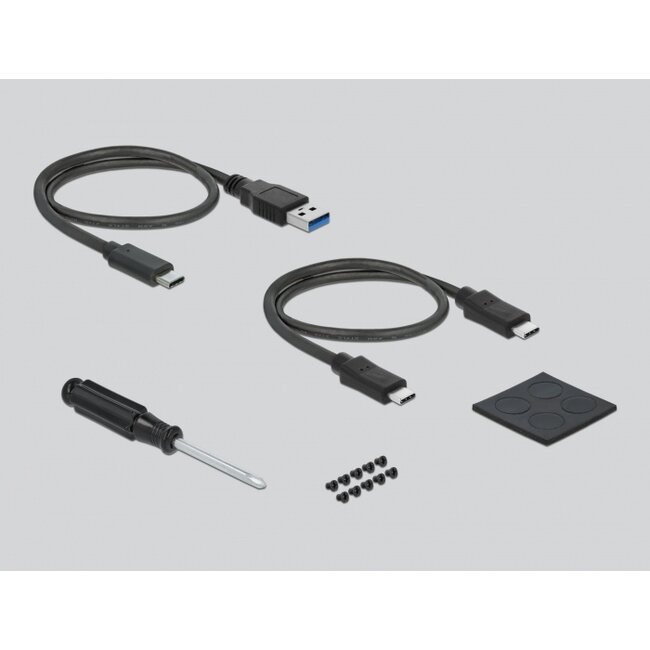

Package content
• External enclosure
• Cable USB-C™ male to USB Type-A male, length ca. 40 cm
• Cable USB-C™ male to USB-C™ male, length ca. 40 cm
• Screws
• Screwdriver
• 4 x rubber pad
• User manual
