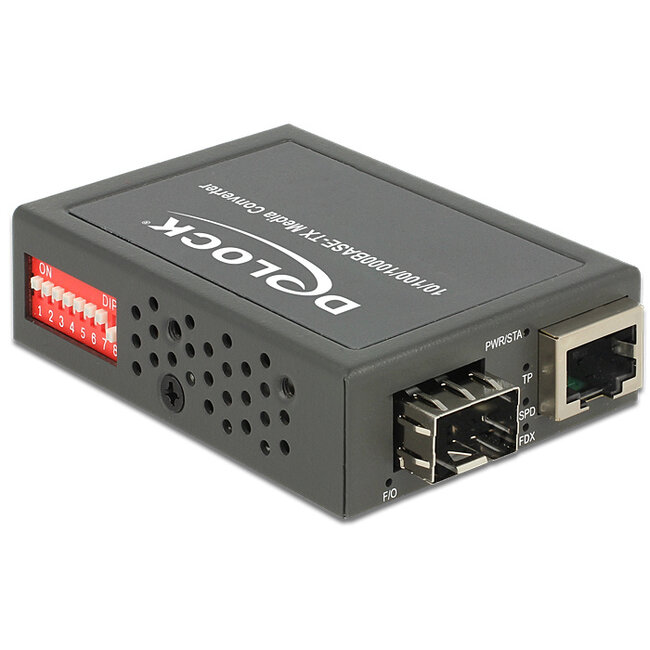

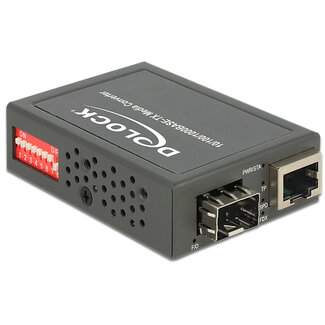

This Delock Gigabit Ethernet Media Converter can be used to expand your network by an optical fiber interface. In the SFP slot, an optional 100 Mb/s or 1 Gb/s SFP module can be used. The compact dimensions allow a space-saving installation.
Specification• Connector:
SFP slot for 100 Mb/s or 1 Gb/s SFP modules (Dual rate)
(SFP module not included)
RJ45 connector for 10/100/1000Base-T
• Transmission rate up to 1 Gb/s
• 5 LEDs for status monitoring
• DIP-switch for configuration of LFP (Link Fault Pass Through),
Half- or Full-Duplex, 10/100/1000 Mb/s mode
• Power supply with 3.3 V included
• Operating temperature: 0° ~ 50° C
• Storage temperature: - 20° ~ 60° C
• Relative humidity: 5 ~ 90 % (not condensing)
• Robust metal housing
• Power consumption: 2.3 W
• Dimensions (LxWxH): ca. 74 x 51 x 20 mm
Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.2 A
• Output: 3.3 V / 1.5 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca.0.75 mm
outside: ø ca. 2.4 mm
length: ca. 8.2 mm
• Device with one free RJ45 port
Package content
• Media Converter
• Power supply
• User manual
